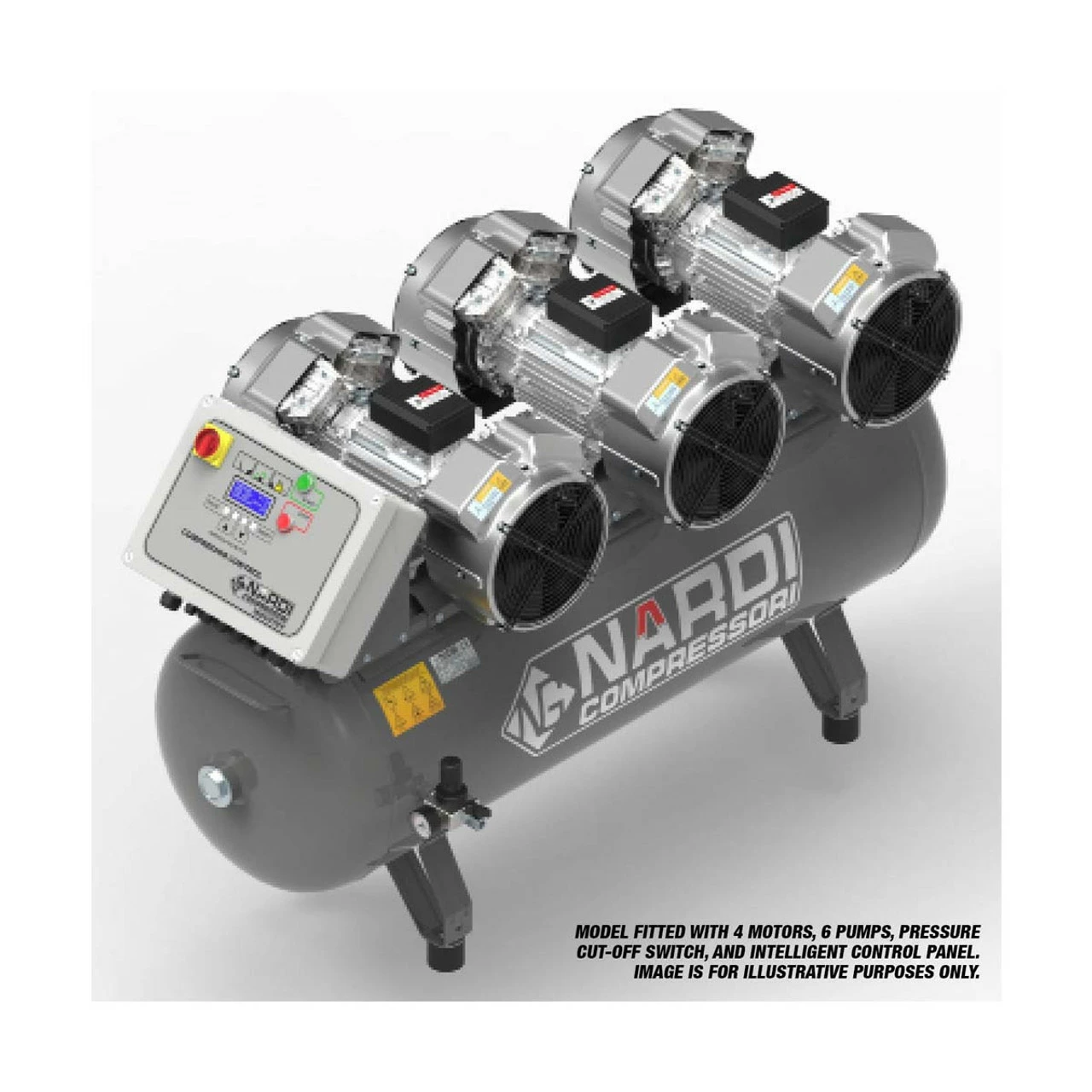

SIP EXTMP27090CP Nardi Extreme MP 9.00HP 270ltr Compressor With Control Panel

SIP EXTMP27090CP Nardi Extreme MP 9.00HP 270ltr Compressor with Control Panel

The NARDI EXTREME MP 9.00HP 270ltr CP Compressor offers high performance via V-Twin pumps and 3x 2.20kW slow-running 4-pole motors, plus intake particle diffusion and forced cooling.

EXTMP27090CP Features:

• 400v 3-PHASE input supply
• 270ltr receiver; 145psi (10bar) max. pressure
• 3x 2.20kW (3.00hp) 4-pole slow-running motors
• 63.60CFM (1800ltr/min) max. piston displacement
• 44.50CFM (1272ltr/min) max. free air delivery (FAD)
• Intelligent control panel; motor control, system monitoring
• High-quality 12-cylinder V-Twin pumps with technopolymer piston rings; oil-free for longer life and low maintenance
• Unique crankcase air intake particle diffusion; reduced air contamination ensuring longer life of the valve plate
• Stainless steel fan-shaped valves for long life durability
• Specially-designed concentric ‘big end’ bearings for reduced vibration and further increased pump life
• For industrial high volume low pressure applications
• Pressure cut-off switch and adjustable air regulator

EXTMP27090CP Specification:

• ITEM NO. EXTMP27090CP
• Input Supply: 400v 3-PHASE
• Motor Power: 3x 2.20kW (3.00hp) 4-POLE 1400rpm
• Receiver Size: 270ltr
• Piston Displacement: 63.60CFM (1800ltr/min)
• Free Air Delivery (FAD): 44.50CFM (1272ltr/min)
• Max. Air Pressure: 145psi (10bar)
• No. of Cylinders: 12 cylinders
• Noise Level: 75dB(A)

What is Included:

• 1x SIP EXTMP27090CP Nardi Extreme MP 9.00HP 270ltr Compressor with Control Panel
