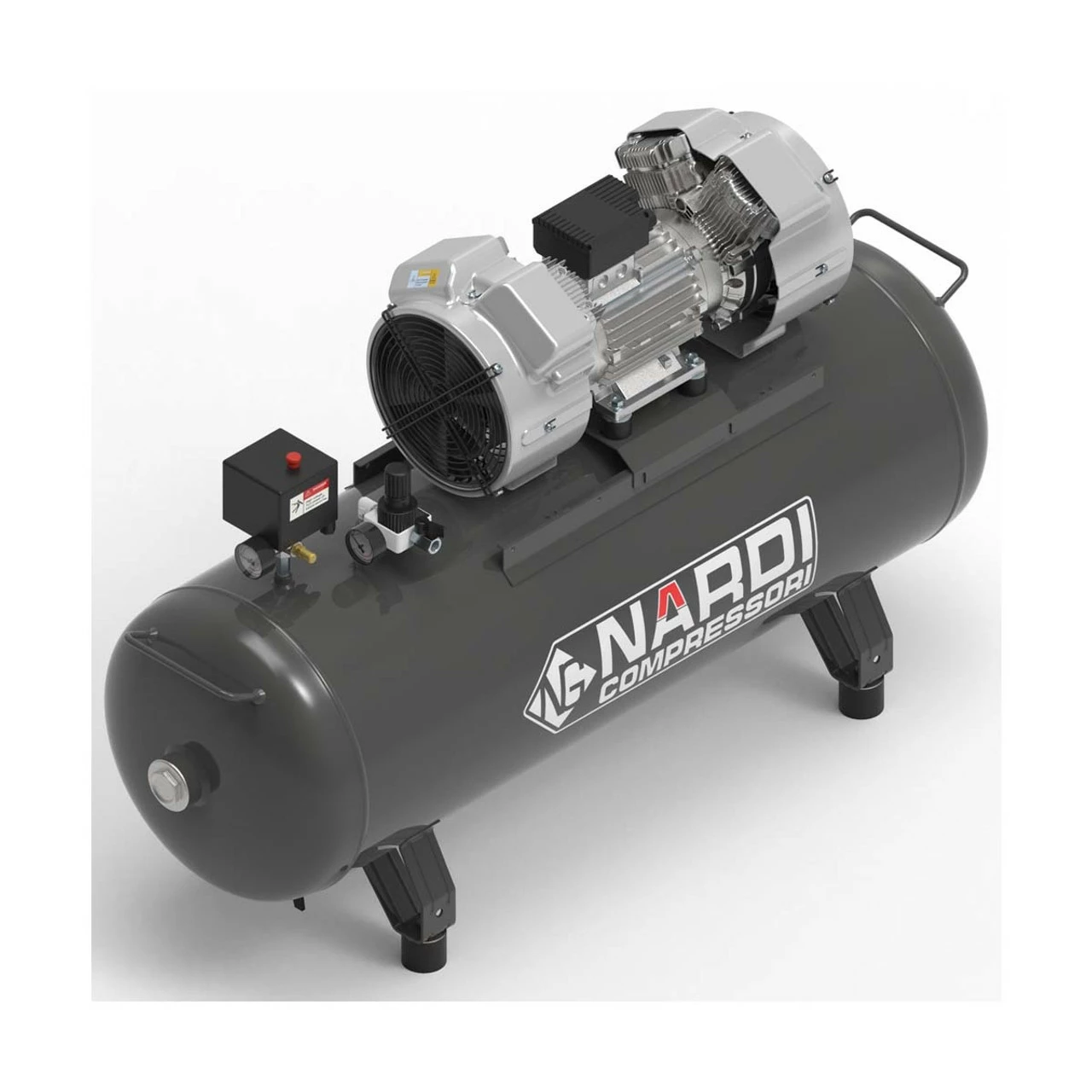

SIP EXTMP20025 Nardi Extreme MP 2.50HP 200ltr Compressor

SIP EXTMP20025 Nardi Extreme MP 2.50HP 200ltr Compressor

The NARDI EXTREME MP 2.50HP 200ltr Compressor offers high performance via V-Twin pumps and 1x 1.84kW slow-running 4-pole motor, plus intake particle diffusion and forced cooling.

EXTMP20025 Features:

• 230v (13A) input supply
• 200ltr receiver; 145psi (10bar) max. pressure
• 1.84kW (2.50hp) 4-pole slow-running motor
• Industrial direct-driven motor and pump assembly
• 17.00CFM (480ltr/min) max. piston displacement
• 11.90CFM (340ltr/min) max. free air delivery (FAD)
• High-quality 4-cylinder V-Twin pumps with techopolymer piston rings; oil-free for longer life and low maintenance
• Unique crankcase air intake particle diffusion; reduced air contamination ensuring longer life of the valve plate
• Stainless steel fan-shaped valves for long life durability
• Specially-designed concentric ‘big end’ bearings for reduced vibration and further increased pump life
• Pressure cut-off switch and adjustable air regulator
• Forced cooling for an extended runtime

EXTMP20025 Specification:

• ITEM NO. EXTMP20025
• Input Supply: 230v (13A)
• Motor Power: 1x 1.84kW (2.50hp) 4-POLE 1400rpm
• Receiver Size: 200ltr
• Piston Displacement: 17.00CFM (480ltr/min)
• Free Air Delivery (FAD): 11.90CFM (340ltr/min)
• Max. Air Pressure: 145psi (10bar)
• No. of Cylinders: 4 cylinders
• Noise Level: 73dB(A)

What is Included:

• 1x SIP EXTMP20025 Nardi Extreme MP 2.50HP 200ltr Compressor
