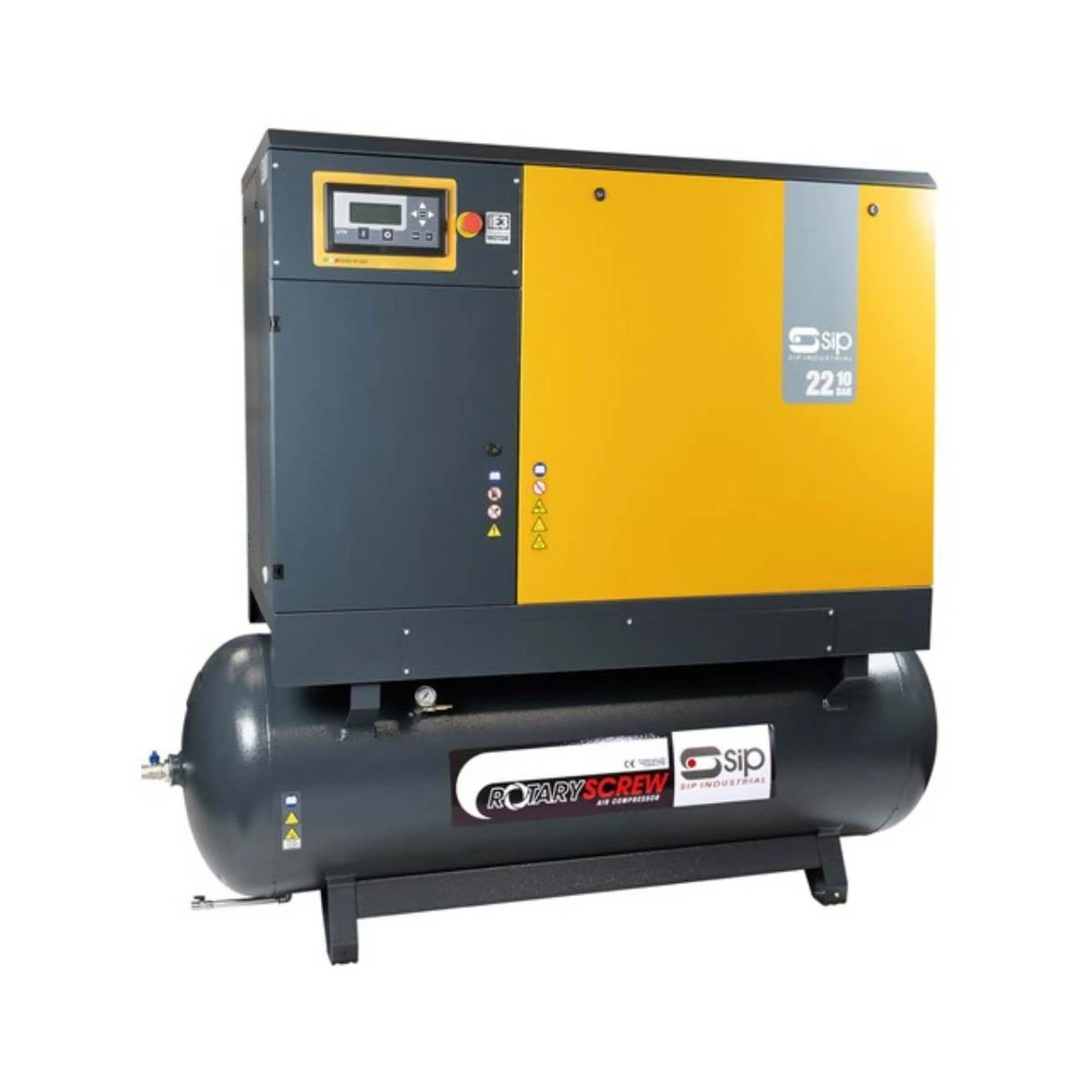

SIP 06535 RS11-10-500BD/FF Rotary Screw Compressor

SIP 06535 RS11-10-500BD/FF Rotary Screw Compressor

The SIP RS11-10-500BD/FF Rotary Screw Compressor is an all-in-one and space-saving workstation that offers very high-quality, clean, and dry compressed air via a generously-sized dryer.

06535 Features:

• 400v (40A) 3-PHASE input supply
• 500ltr large receiver; 145psi (10bar) max. pressure
• 53.00CFM (1500ltr/min) max. free air delivery (FAD)
• Powerful 11kW (14.75hp) motor for high performance
• High-quality and dry air provided by a generous dryer
• All-in-one and easy-to-use workstation; quiet operation, compact and modern design; ideal for continuous use
• Air end, dryer, filters, controller, and receiver housed in a single modular unit; an easy space-saving solution
• Dry tank technology; constant airflow, reduced corrosion
• Automatic condensate discharge and status via panel
• Offers easy access for servicing and maintenance
• Drastically reduced installation time and cost
• Fully automatic, integrated, self-monitoring

06535 Specification:

• ITEM NO. 06535
• Input Supply: 400v (40A) 3-PHASE
• Motor Power: 11kW (14.75hp)
• Receiver Size: 500ltr
• Free Air Delivery (FAD): 53.00CFM (1500ltr/min)
• Max. Air Pressure: 145psi (10bar)
• Filtration Level: 10µm particulate, 1µm oil filter
• Refrigeration Dryer: 3°C Dew Point
• Air Quality: 2-4-2 (ISO 8573-1*)
• Noise Level: 65dB(A)
• *Class ISO 857301
• Solid Particle (max. per mtr³): 2; 100,000 (0.1µm – 0.5µm)
• Water (Pressure Dew Point): 4; 3°C
• Oil (mg/mtr³): 2; 0.1

What is Included:

• 1x SIP 06535 RS11-10-500BD/FF Rotary Screw Compressor
