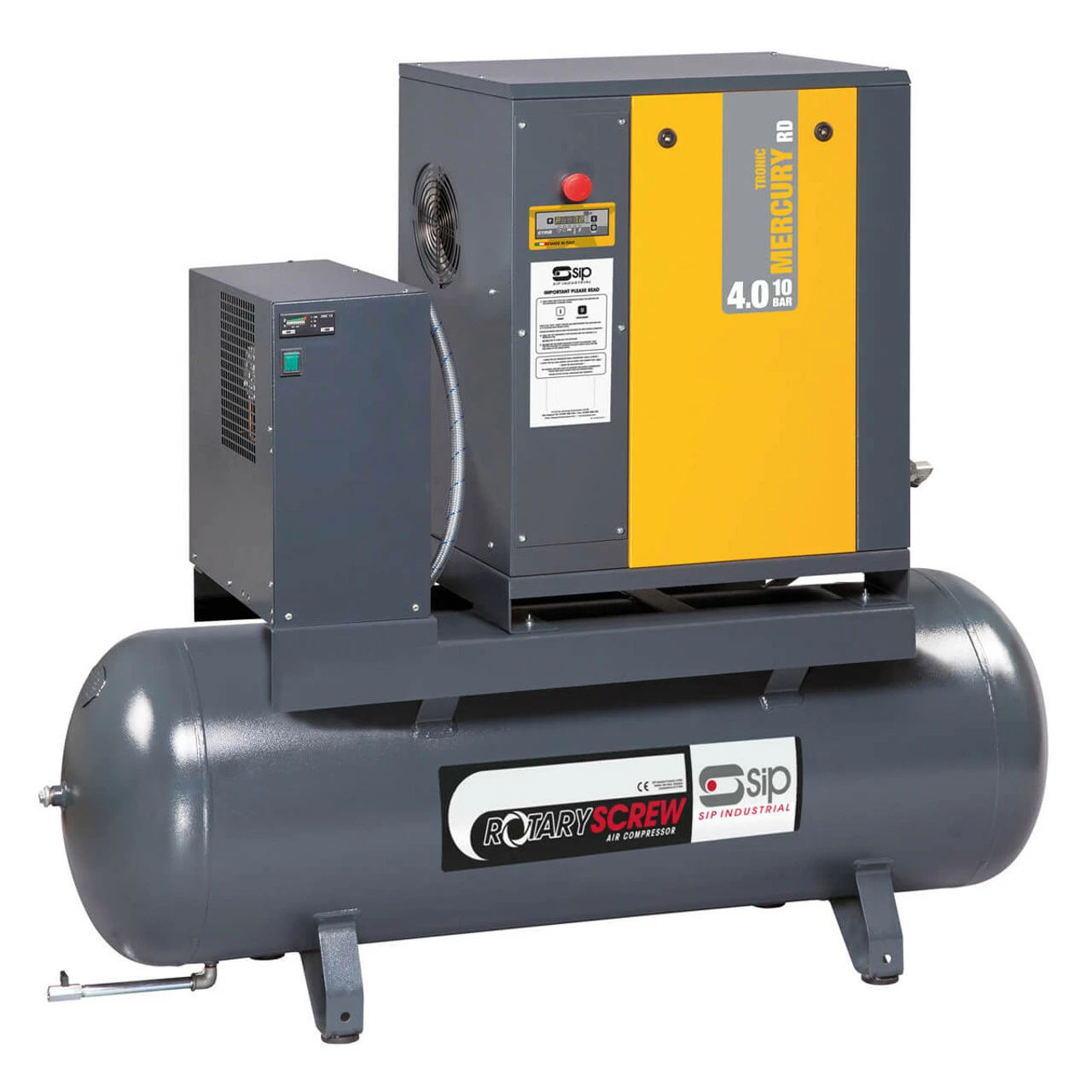

SIP 06274 Mercury Tronic 4.0-10-200-ES Screw Compressor With Dryer

SIP 06274 Mercury Tronic 4.0-10-200-ES Screw Compressor with Dryer

The SIP Mercury Tronic 4.0-10-200ES is a powerful industrial-grade screw compressor with a refrigeration dryer, a POLY-V belt drive and ETM II controller for optimum performance.

Features

• 400v (20amp) input supply
• 230v (13amp) refrigeration dryer
• Powerful 5.5hp (4.0kW) IE3 motor
• Heavy-duty 200 litre air receiver size
• 17CFM maximum free air delivery
• 145psi (10 bar) maximum air pressure
• POLY-V-type belt-driven transmission
• ETM II (Easy Tronic Micro II) controller
• Thermostatic-controlled centrifugal fan
• 24hrs use without a performance drop
• Easy-to-reach oil filter and separator
• 95% efficiency plus 100% duty cycle
• Mechanical ON/OFF, pressure switch
• Super low 60dB(A) noise level
• Premium Italian construction

06274 Specification

• ITEM NO. 06274
• Input Supply: 400v (20A) 3ph
• Motor Power: 5.5hp (4.0kW) IE3
• Receiver Size: 200 litres
• Max. Free Air Delivery: 17CFM (485 litres/min)
• Maximum Pressure: 145psi (10 bar)
• Controller Type: ETM II
• Noise Level: 60dB(A)

What is included:

• 1 x SIP 06274 Mercury Tronic 4.0-10-200-ES Screw Compressor with Dryer
