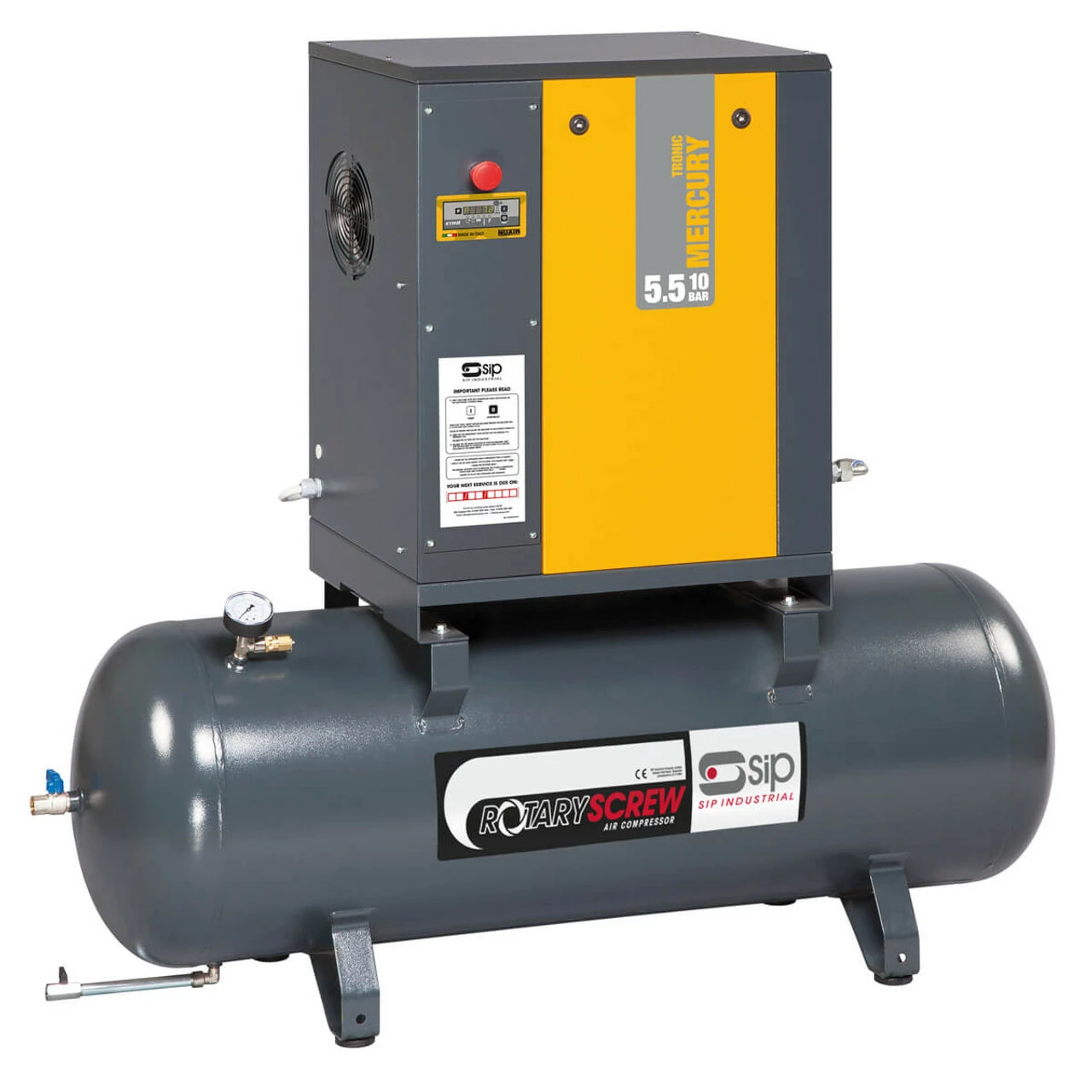

SIP 06201 Mercury Tronic 5.5-10-270 Screw Compressor

SIP 06201 Mercury Tronic 5.5-10-270 Screw Compressor

The SIP Mercury Tronic 5.5-10-270 is a screw compressor built with a thermostatically-controlled centrifugal fan, a POLY-V belt drive, and durable IE3 motor for 95% efficiency.

Features

• 400v (20amp) input supply
• Heavy-duty 270 litre air receiver
• Powerful 7.5hp (5.5kW) IE3 motor
• 23CFM maximum free air delivery
• 145psi (10 bar) max. working pressure
• POLY-V-type belt-driven transmission
• Thermostatic-controlled centrifugal fan
• 95% efficiency for lower energy losses
• 100% duty cycle for high performance
• Mechanical ON/OFF, pressure switch
• Large durable oil filter and separator
• Premium Italian construction

06201 Specification

• ITEM NO. 06201
• Input Supply: 400v (20A)
• Motor Power: 7.5hp (5.5kW) IE3
• Receiver Size: 270 litres
• Max. Free Air Delivery: 23CFM (650 litres/min)
• Maximum Pressure: 145psi (10 bar)
• Noise Level: 64dB(A)

What is included:

• 1 x SIP 06201 Mercury Tronic 5.5-10-270 Screw Compressor
