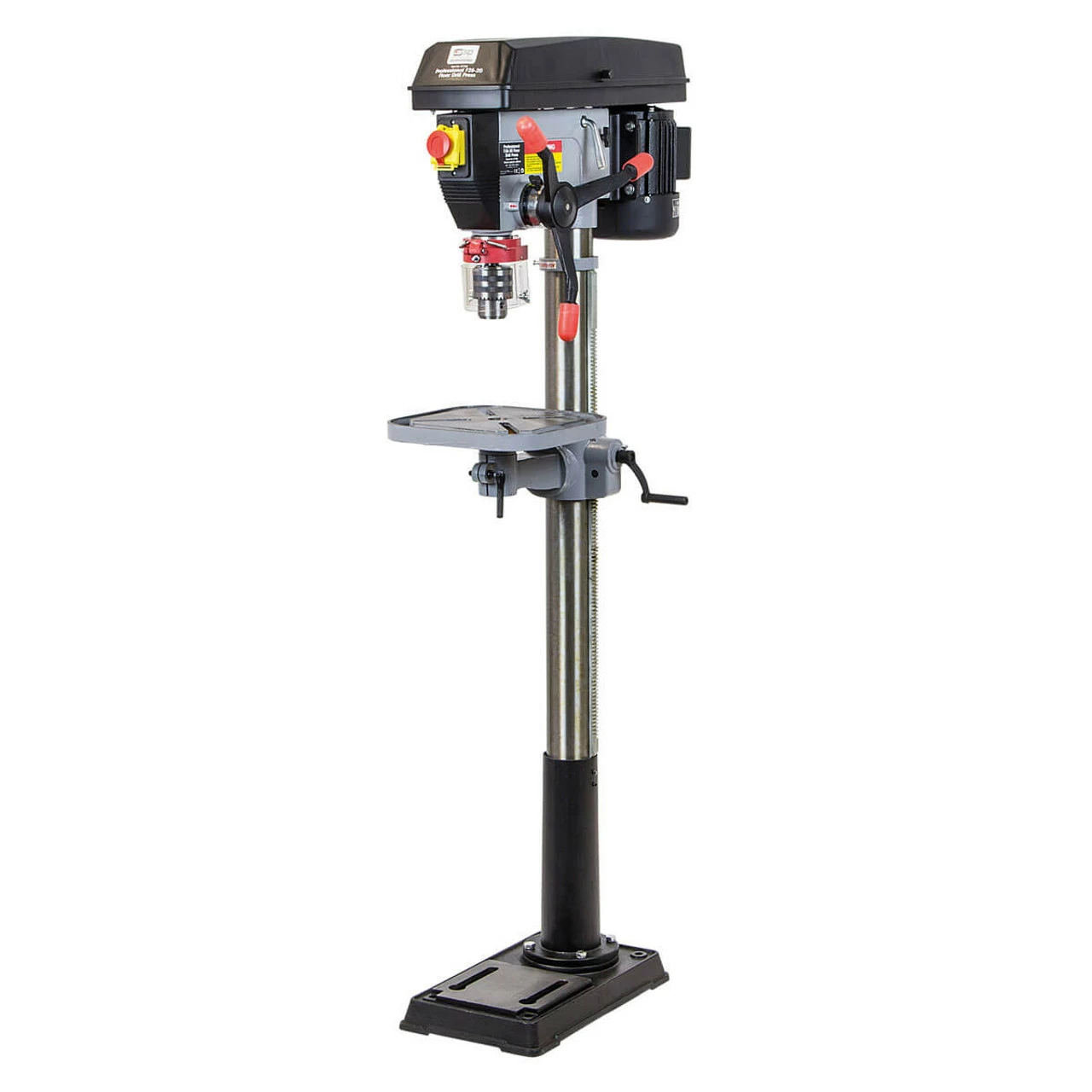

SIP 01706 F28-20 Floor Pillar Drill
The SIP F28-20 Floor Pillar Drill has a cast iron construction with a magnetic NVR switch, thermally-protected motor, and soft-grip handles. Ideal for woods, metals, and plastics.
Features
- 230v (13A) input supply
- Heavy-duty 750w (1hp) motor
- 16mm maximum drilling capacity
- 12 working speeds (280 – 2380rpm)
- 5mm to 20mm chuck capacity range
- Quick easy motor speed adjustment
- One-piece build & soft-grip handles
- Motor features thermal protection
- Integrated magnetic NVR switch
- Sturdy cast iron table and base
- Ideal for wood, metal, plastic
- 2 year drill motor warranty
01706 Specification
- ITEM NO. 01706
- Input Supply: 230v (13A)
- Motor Power: 750w (1.0hp)
- Speed Range: 280 – 2380rpm
- Speed Options: 12 speeds
- Chuck Capacity: 5mm – 20mm
- Drilling Capacity: 25mm
- Spindle Taper: MT3
- Table Size: 290 x 290mm
- Base Size: 460 x 272mm
- Column: Ø 80mm
- Collar: Ø 65mm
- Swing: 360mm
- Throat: 180mm
- Overall Height: 1600mm
- Max. Spindle Stroke: 82.5mm
- Max. Dist. Chuck to Table: 687mm
- Max. Dist. Chuck to Base: 1177mm
What is included:
- 1 x SIP 01706 F28-20 Floor Pillar Drill
