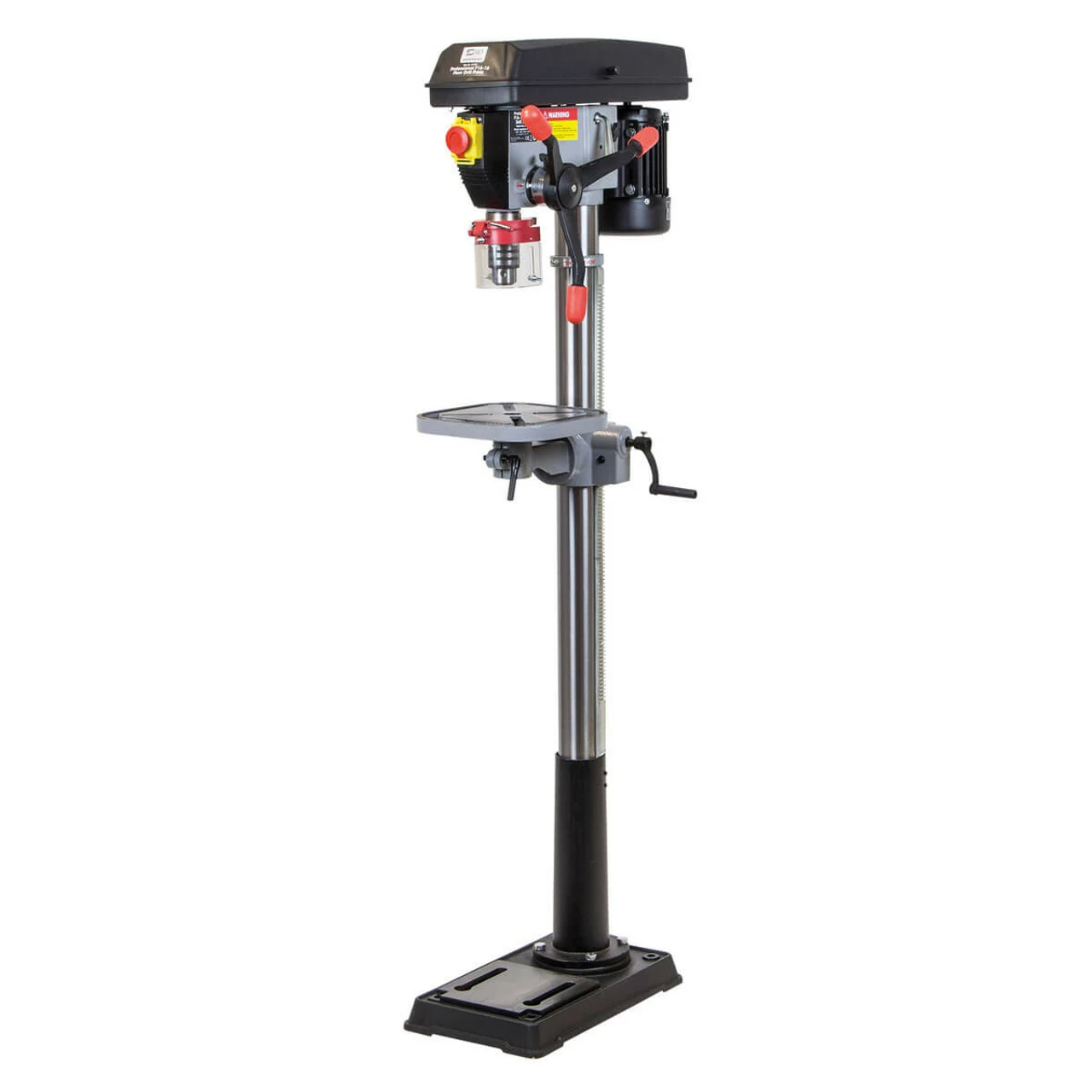

SIP 01704 F16-16 Floor Pillar Drill

SIP 01704 F16-16 Floor Pillar Drill

The SIP F16-16 Floor Pillar Drill has a cast iron construction with a magnetic NVR switch, thermally-protected motor, and soft-grip handles. Ideal for woods, metals, and plastics.

Features

• 230v (13A) input supply
• Heavy-duty 375w (0.5hp) motor
• 16mm maximum drilling capacity
• 16 working speeds (180 – 2770rpm)
• 3mm to 16mm chuck capacity range
• Quick easy motor speed adjustment
• One-piece build & soft-grip handles
• Motor features thermal protection
• Integrated magnetic NVR switch
• Sturdy cast iron table and base
• Ideal for wood, metal, plastic
• 2 year drill motor warranty

01704 Specification

• ITEM NO. 01704
• Input Supply: 230v (13A)
• Motor Power: 375w (0.5hp)
• Speed Range: 180 – 2770rpm
• Speed Options: 16 speeds
• Chuck Capacity: 3mm – 16mm
• Drilling Capacity: 16mm
• Spindle Taper: MT2
• Table Size: 250 x 250mm
• Base Size: 450 x 265mm
• Column: Ø 72mm
• Collar: Ø 55mm
• Swing: 325mm
• Throat: 162.5mm
• Overall Height: 1550mm
• Max. Spindle Stroke: 80mm
• Max. Dist. Chuck to Table: 725mm
• Max. Dist. Chuck to Base: 1205mm

What is included:

• 1 x SIP 01704 F16-16 Floor Pillar Drill
