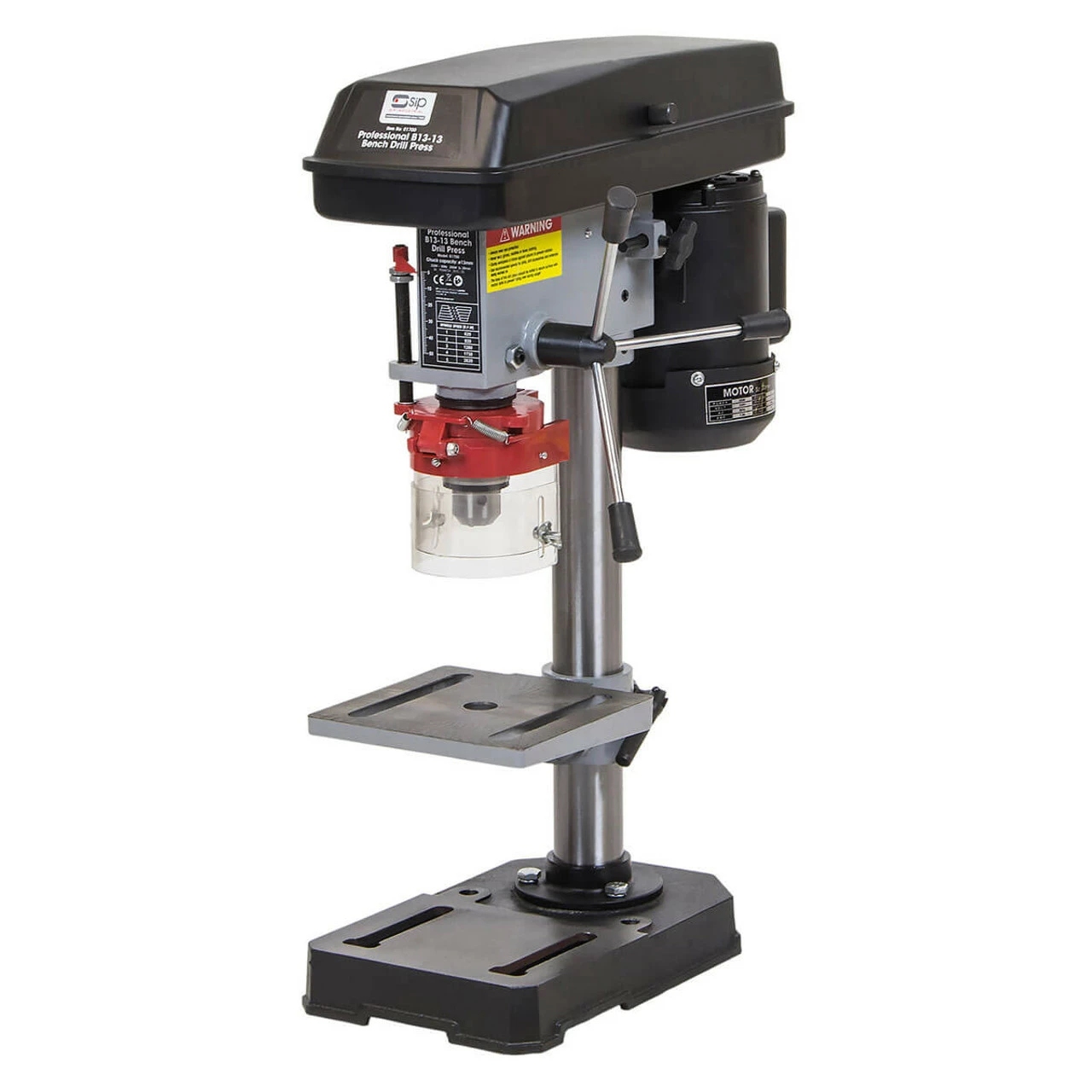

SIP 01700 B13-13 Bench Pillar Drill

SIP 01700 B13-13 Bench Pillar Drill

The SIP B13-13 Bench Pillar Drill has a cast iron construction with soft grip handles, thermally-protected motor, and easy motor speed adjustment. Ideal for woods, metals, and plastics.

Features

• 230v (13A) input supply
• Heavy-duty 350w (0.4hp) motor
• 13mm maximum drilling capacity
• 5 working speeds (620 to 2620rpm)
• 1.5mm – 13mm chuck capacity range
• Quick easy motor speed adjustment
• One-piece build & soft-grip handles
• Motor features thermal protection
• Sturdy cast iron table and base
• Ideal for wood, metal, plastic
• 2 year drill motor warranty

01700 Specification

• ITEM NO. 01700
• Input Supply: 230v (13A)
• Motor Power: 350w (0.4hp)
• Speed Range: 620 – 2620rpm
• Speed Options: 5 speeds
• Chuck Capacity: 1.5mm – 13mm
• Drilling Capacity: 13mm
• Spindle Taper: B16
• Table Size: 160 x 160mm
• Base Size: 290 x 190mm
• Column: Ø 46mm
• Collar: Ø 40mm
• Swing: 210mm
• Throat: 105mm
• Overall Height: 580mm
• Max. Spindle Stroke: 50mm
• Max. Dist. Chuck to Table: 220mm
• Max. Dist. Chuck to Base: 300mm

What is included:

• 1 x SIP 01700 B13-13 Bench Pillar Drill
