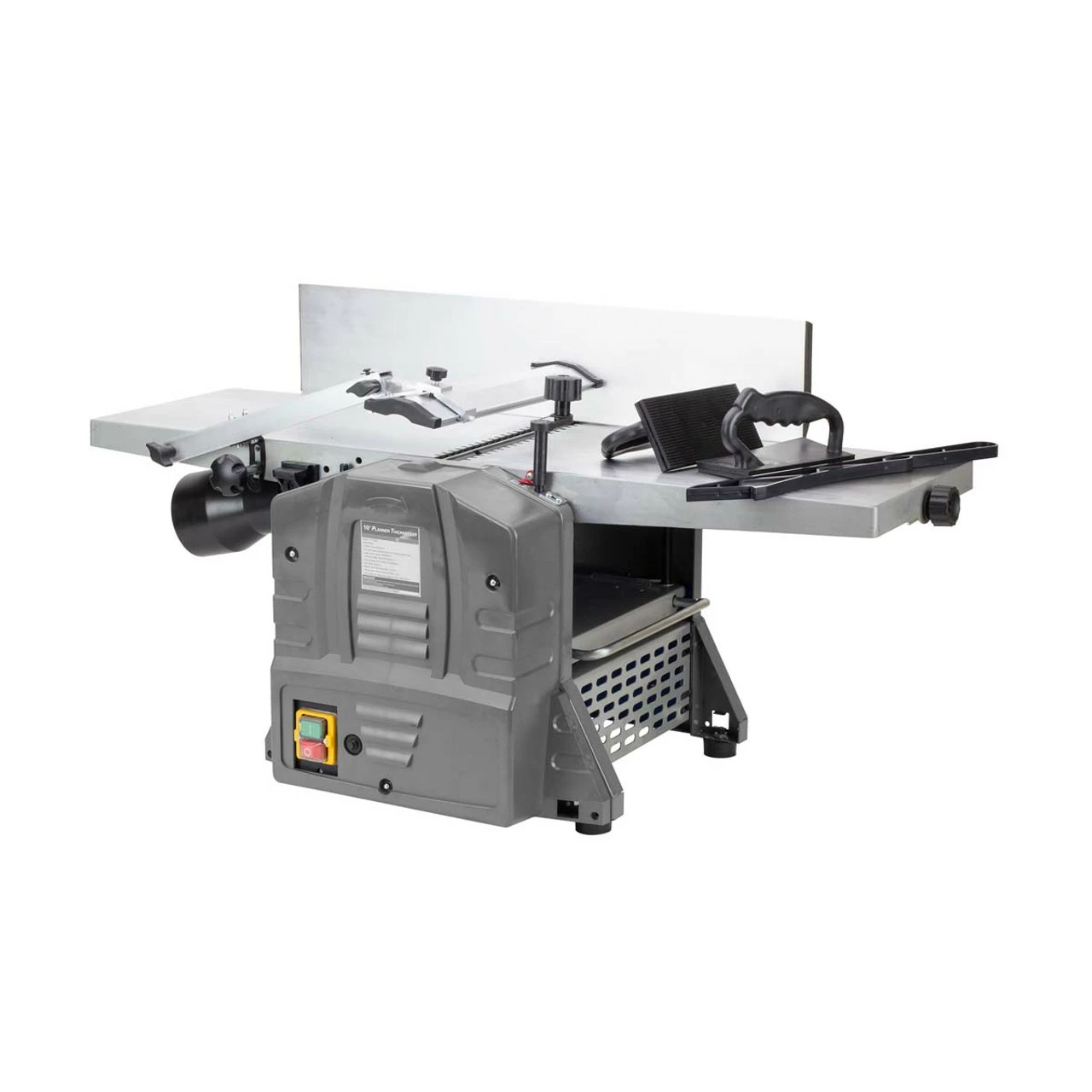

SIP 01558 10″ Planer Thicknesser

SIP 01558 10″ Planer Thicknesser

The SIP 10″ x 5″ Planer Thicknesser is built for quick and efficient planing via an 2.5mm adjustable cutting depth and a fence with 90° to 135° tilting. Built-in dust extraction for effortless planing.

01558 Features:

• 230v (13A) input supply; 1500w (2hp) motor
• 252mm planer width; 2.5mm max. cutting depth
• 90° to 135° fence tilting; adjustable and versatile
• 9000rpm cutter block speed; 920mm table size
• 5mm to 120mm timber thicknessing; 252mm width
• 6.4mtr/min feed speed, 2mm max. depth of cut
• Ideal for both square and chamfered planing
• Cast aluminium machine-surfaced table tops for accurate planing of longer timber lengths
• Power-fed rollers for consistently smooth finish
• Built-in dust extraction and expander adaptor
• Fitted with safety interlock switches
• Integrated NVR switch

01558 Specification:

• ITEM NO. 01558
• Input Supply: 230v (13A)
• Motor Power: 1.5kW (2hp)
• Cutter Block Speed: 9000rpm
• Dust Extraction Outlet (ID/OD): 55mm / 62mm
• Dust Extraction Adaptor (ID/OD): 63mm / 68mm
• Planer Width: 252mm
• Table Height: 355mm
• Table Length: 920mm
• Fence Tilting: 90° – 135°
• Max. Cutting Depth: PLANING; 2.5mm / THICKNESSING; 2mm
• Timber Size Range: 5mm – 120mm
• Max. Timber Width: 252mm
• Noise Level: 105db(A)

What is Included:

• 1x SIP 01558 10″ Planer Thicknesser
