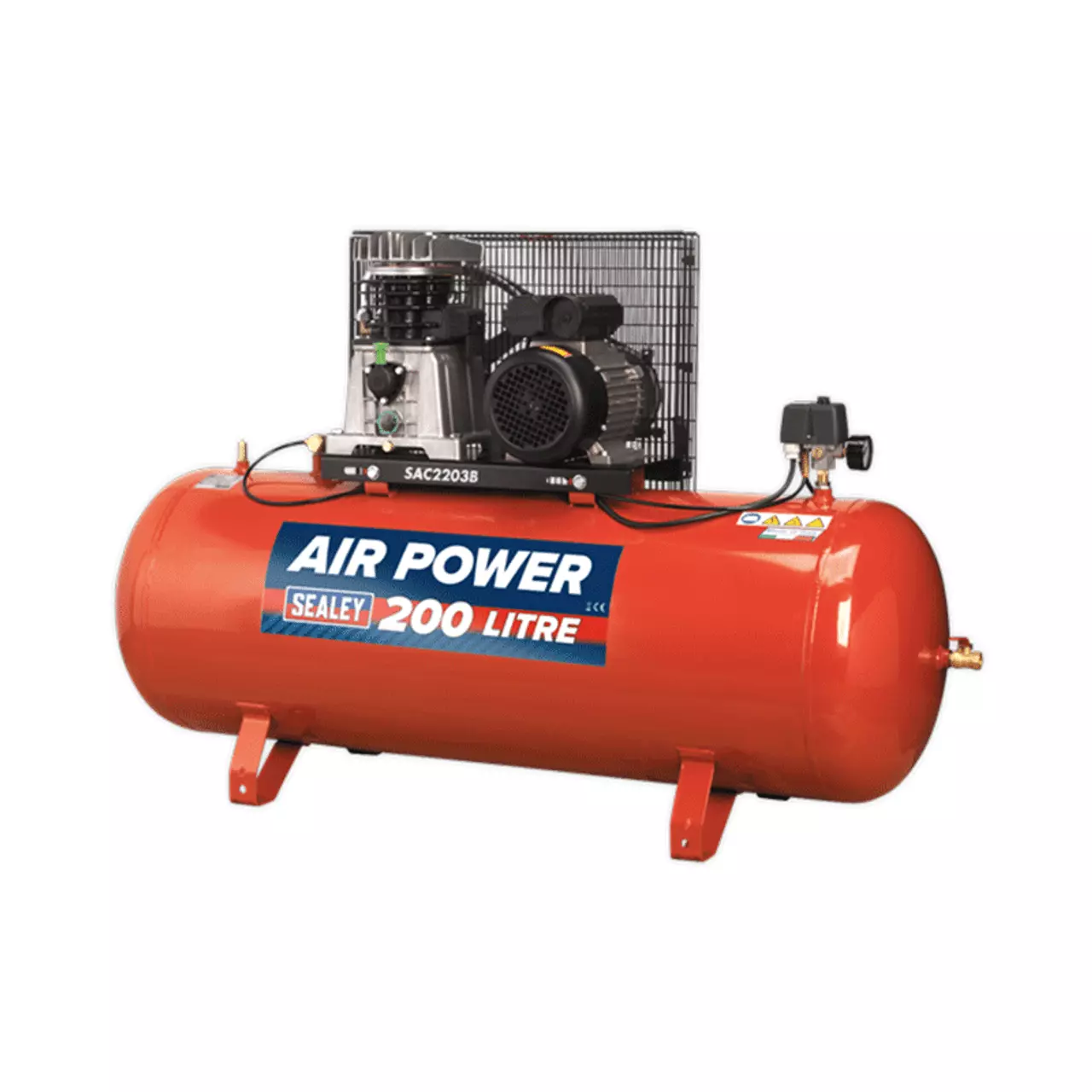

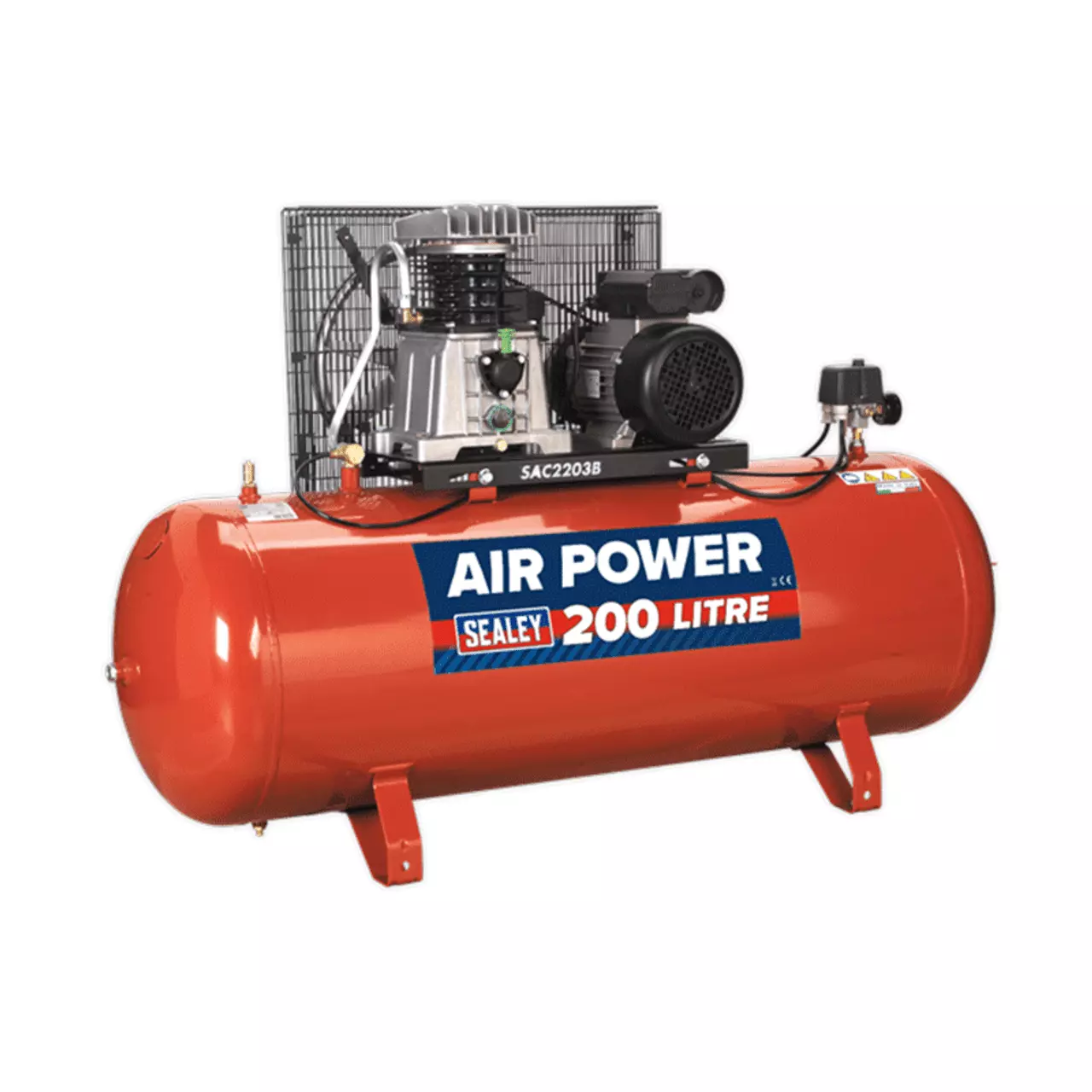

Sealey SAC2203B 200L Belt Drive Compressor 3hp With Cast Cylinders

Sealey SAC2203B 200L Belt Drive Compressor 3hp with Cast Cylinders

The Sealey SAC2203B 200L Belt Drive Compressor 3hp with Cast Cylinders is Sealeys top-of-the-range single phase 200L compressor, this unit is suitable for the professional workshop and is fitted with a genuine 3hp motor. It has twin capacitors and a centrifugal switch aid trouble-free start-up on a good 13A supply, however on this model Sealey recommend fitting a 16A plug and connecting to a 20A supply protected by a type C circuit breaker for easier start-up. The pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long-life.

SAC2203B Features:

• Suitable for the professional workshop
• 3hp motor.
• Twin capacitors and a centrifugal switch aid trouble-free start-up on a good 13A supply.
• Recommended fitting is a 16A plug and connecting to a 20A supply protected by a type C circuit breaker for easier start-up.
• Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long-life.
• Heavy-duty drive guard protects belt and flywheel that is designed to force air over the pump to aid cooling.
• Supplied with full CE certification, test certificates and operating/maintenance manual.

SAC2203B Specification:

• Air Displacement cfm(L/min): 15(425)

• Maximum Free Air Delivery cfm(L/min): 10.9(309)
• Maximum Pressure: 145psi(10bar)
• Minimum Rated Supply: 16A
• Motor Output: 3hp
• Nett Weight: 97kg
• Outlet: 1/2″BSP Female Tap
• Phase: 1ph
• Receiver Capacity: 200L
• Size (W x D x H): 1440 x 440 x 900mm
• Speed: 1280rpm
• Supply: 230V

What is Included:

• 1x Sealey 200L Belt Drive Compressor 3hp with Cast Cylinders
