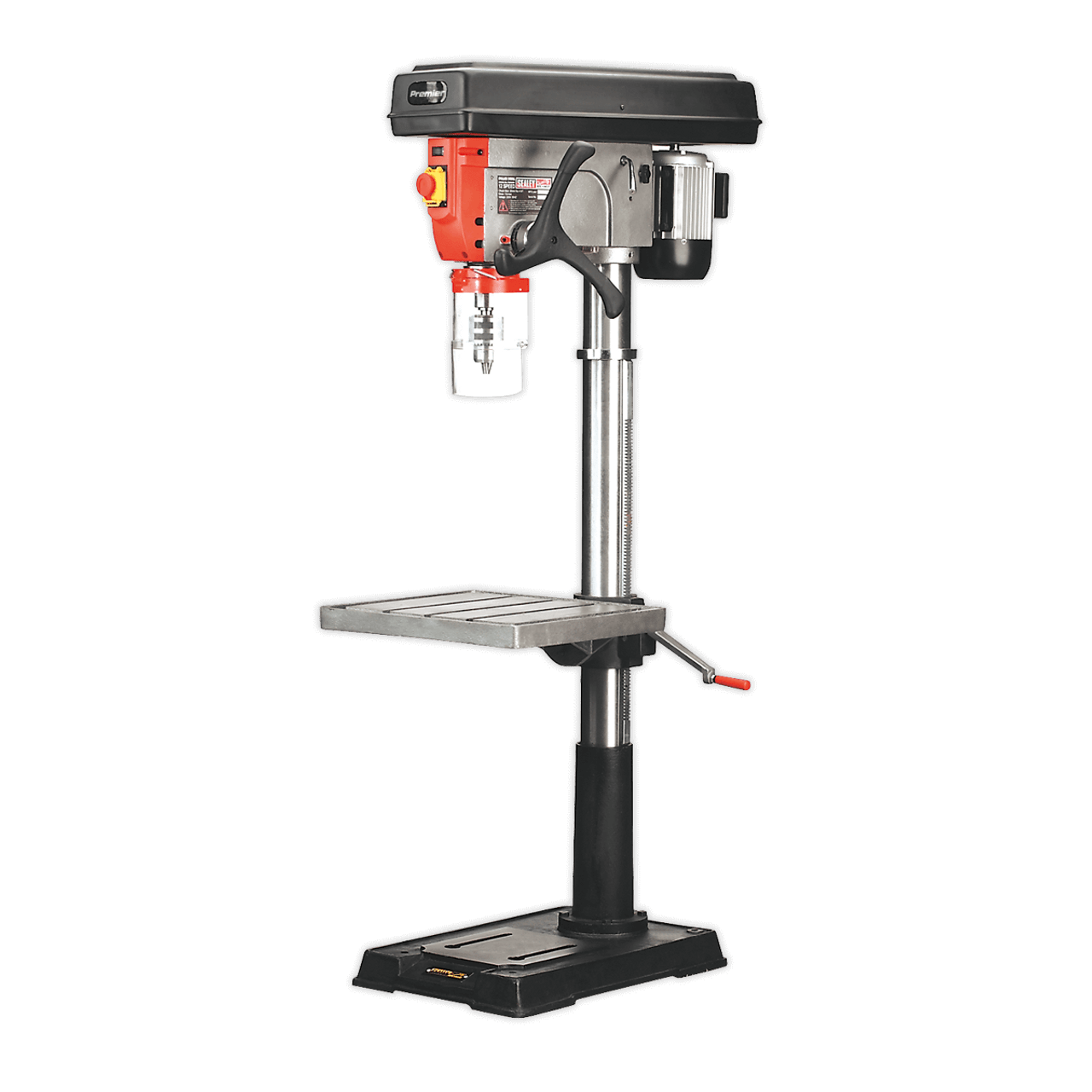

Sealey PDM260F Pillar Drill Floor 12-Speed 1710mm Height 230V

Sealey PDM260F Pillar Drill Floor 12-Speed 1710mm Height 230V

One of a comprehensive range of Premier floor standing pillar drills for the professional workshop. Features heavy-duty aluminium-bodied motor for long and reliable performance. No-volt release switch to prevent inadvertent start up and pulley cover protected by microswitch to prevent drill operating when cover is open. Fitted with an integral work light which illuminates the drilling table giving operator a clear view of the drilling process. Supplied with an electrically inter-locked chuck guard. Large sized square table fitted with precision rack and pinion height adjustment.

PDM260F Features

• One of a comprehensive range of Premier floor standing pillar drills for the professional workshop
• Features heavy-duty aluminium-bodied motor for long and reliable performance
• No-volt release switch to prevent inadvertent start up and pulley cover protected by microswitch to prevent drill operating when cover is open
• Fitted with an integral work light which illuminates the drilling table giving operator a clear view of the drilling process
• Supplied with an electrically inter-locked chuck guard
• Large sized square table fitted with precision rack and pinion height adjustment

PDM260F Specification

• Model No PDM260F
• Base Size: 575 x 455mm
• Brand: Premier
• Collar Diameter: Ø85mm
• Column Diameter: Ø92mm
• Drilling Capacity (Chuck Size): 20mm
• Integral Work Light: Yes
• Maximum Distance Spindle to Base: 1160mm
• Maximum Distance Spindle to Table: 680mm
• Motor Power (Start): 1100W(1500W)
• Nett Weight: 131kg
• Number of Speeds: 12
• Optional Accessories: PDM/KC – Keyless Pillar Drill Chuck 16mm
• Overall Height: 1710mm
• Speed Range: 120-3480rpm
• Spindle Centre to Column: 260mm
• Spindle Nose Taper: MT4
• Spindle Travel: 120mm
• Supply: 230V
• Swing: 520mm
• Working Base Surface Size: 410 x 330mm
• Working Table Surface Size: 425 x 475mm

What is included:

• 1 x Sealey PDM260F Pillar Drill Floor 12-Speed 1710mm Height 230V
