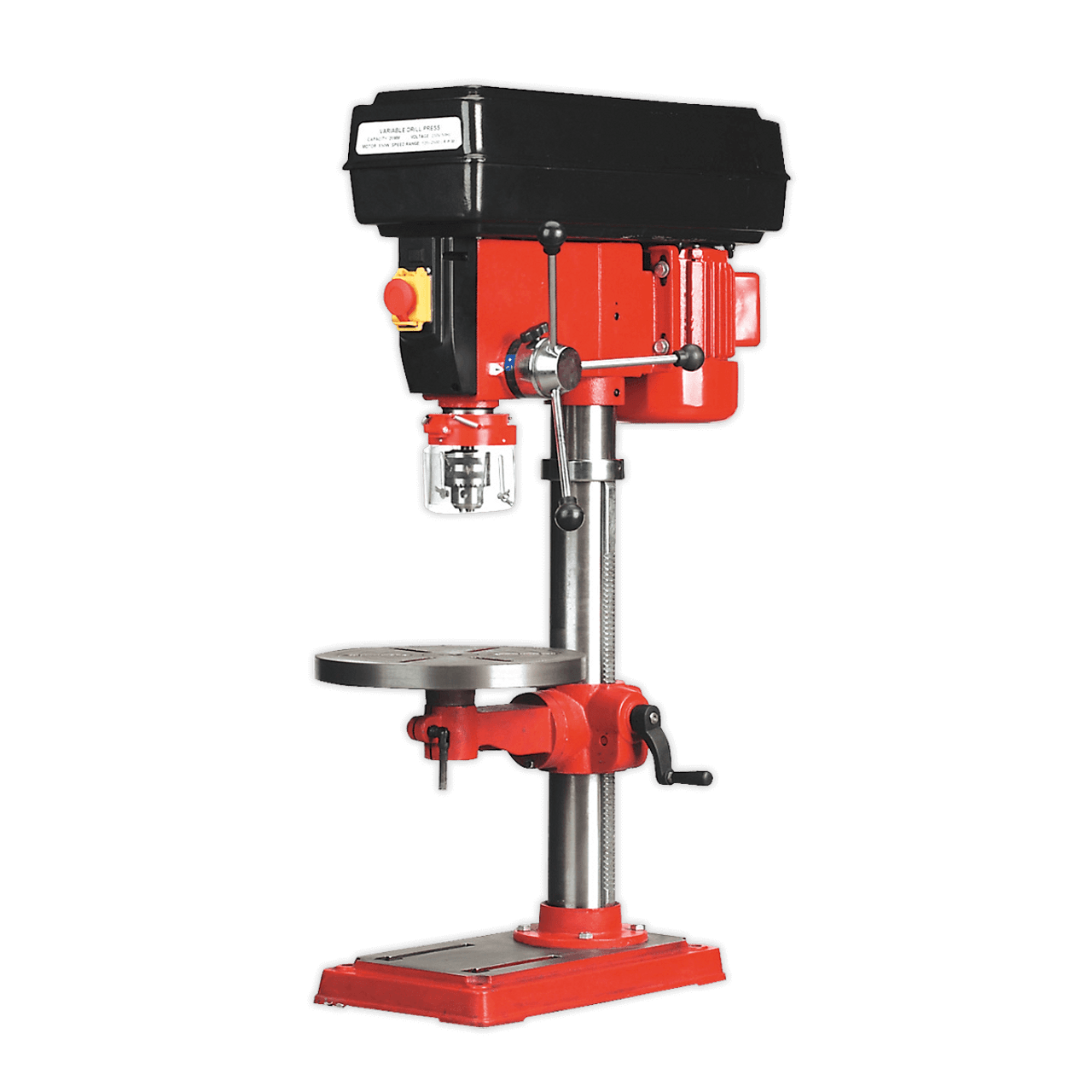

Sealey GDM150B Pillar Drill Bench 16-Speed 1070mm Height 650W/230V

Sealey GDM150B Pillar Drill Bench 16-Speed 1070mm Height 650W/230V

One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications. Meets Safety of Machinery (Safety) Directives 1992 (and amendments). Fitted with rack and pinion feed shafts with adjustable preset depth control for repetitive work. Features multiple speed drives and Morse taper spindle housing for accepting taper shank drill bits. Fully guarded and suitable for educational use. Fitted with no-load voltage switch and locking cover to prevent accidental starting. Access to drive belts is denied during operation by mechanical protection. Optional Mortise attachment is available.

GDM150B Features

• One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications
• Meets Safety of Machinery (Safety) Directives 1992 (and amendments)
• Safety devices fitted include a no voltage release switch, allowing insurance company approval for use in educational establishments
• Model No

GDM50B and up have Morse taper spindle housings for taking taper shank drill bits

• All models offer multiple speed drives and access to drive belts is denied during operation by mechanical protection
• All drills are fitted with rack and pinion feed shafts with preset depth control for repetitive work
• Mortise attachments are available for all Model No’s GDM120B – GDM200F inclusive

GDM150B Specification

• Model No GDM150B
• Base Size: 460 x 275mm
• Brand: Sealey
• Collar Diameter: 60mm
• Column Diameter: 80mm
• Drilling Capacity (Chuck Size): 16mm
• Maximum Distance Spindle to Base: 670mm
• Maximum Distance Spindle to Table: 480mm
• Motor Power (Start): 450W(650W)
• Nett Weight: 60kg
• Number of Speeds: 16
• Optional Accessories: GDMX/KC – Keyless Pillar Drill Chuck 16mm
• Overall Height: 1070mm
• Speed Range: 120-3000rpm
• Spindle Centre to Column: 178mm
• Spindle Nose Taper: MT2
• Spindle Travel: 80mm
• Supply: 230V
• Swing: 356mm
• Working Base Surface Size: 200 x 220mm
• Working Table Surface Size: Ø310mm

What is included:

• 1 x Sealey GDM150B Pillar Drill Bench 16-Speed 1070mm Height 650W/230V
