Milwaukee L4CLL-301C USB Rechargeable Green Cross Line Laser Level

Milwaukee L4CLL-301C USB Rechargeable Green Cross Line Laser Level

The Milwaukee L4CLL-301C is a USB rechargeable cross line laser level, providing a bright green beam at a working range of 30 metres. Ideal for trade professionals, it has up to 4x better visibility than red lasers, and provides excellent all-in-one functionality with both horizontal and vertical alignment. It features a 3 mode pendulum system which includes: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4° self-levelling range and Pendulum Lock Mode to protect components during transport. The supplied USB redlithium battery provides efficient all-day run time of up to 8 hours.

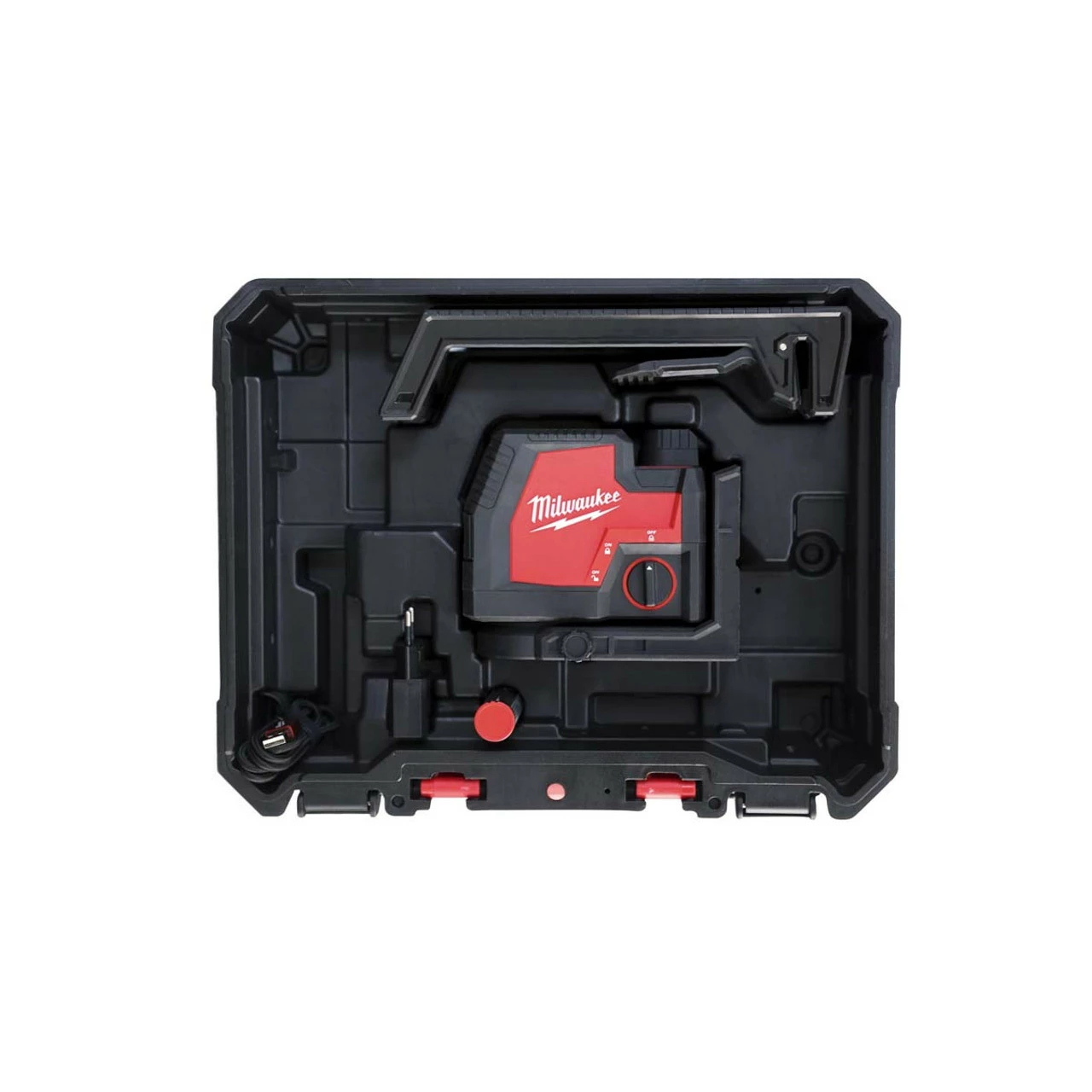

Supplied as a kit with a battery pack, USB cable and wall plug, and kit box.

L4CLL-301C Features:

• REDLITHIUM™ USB rechargeable green cross line laser provides an all-in-one functionality with horizontal levelling and vertical alignment
• Built with high intensity green diodes to provide uncompromised visibility – up to 4x better visibility vs red lasers
• High intensity green beams provide a working range of 30 m and up to 100 m with a detector
• The rechargeable and removable REDLITHIUM™ USB 3.0 Ah battery provides all day run time of over 8 hours
• 1x REDLITHIUM™ USB 3.0 battery replaces up to 6,000 alkaline batteries over the lifetime of the battery
• 3 mode pendulum system: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4° self-levelling range and Pendulum Lock Mode to protect components during transport

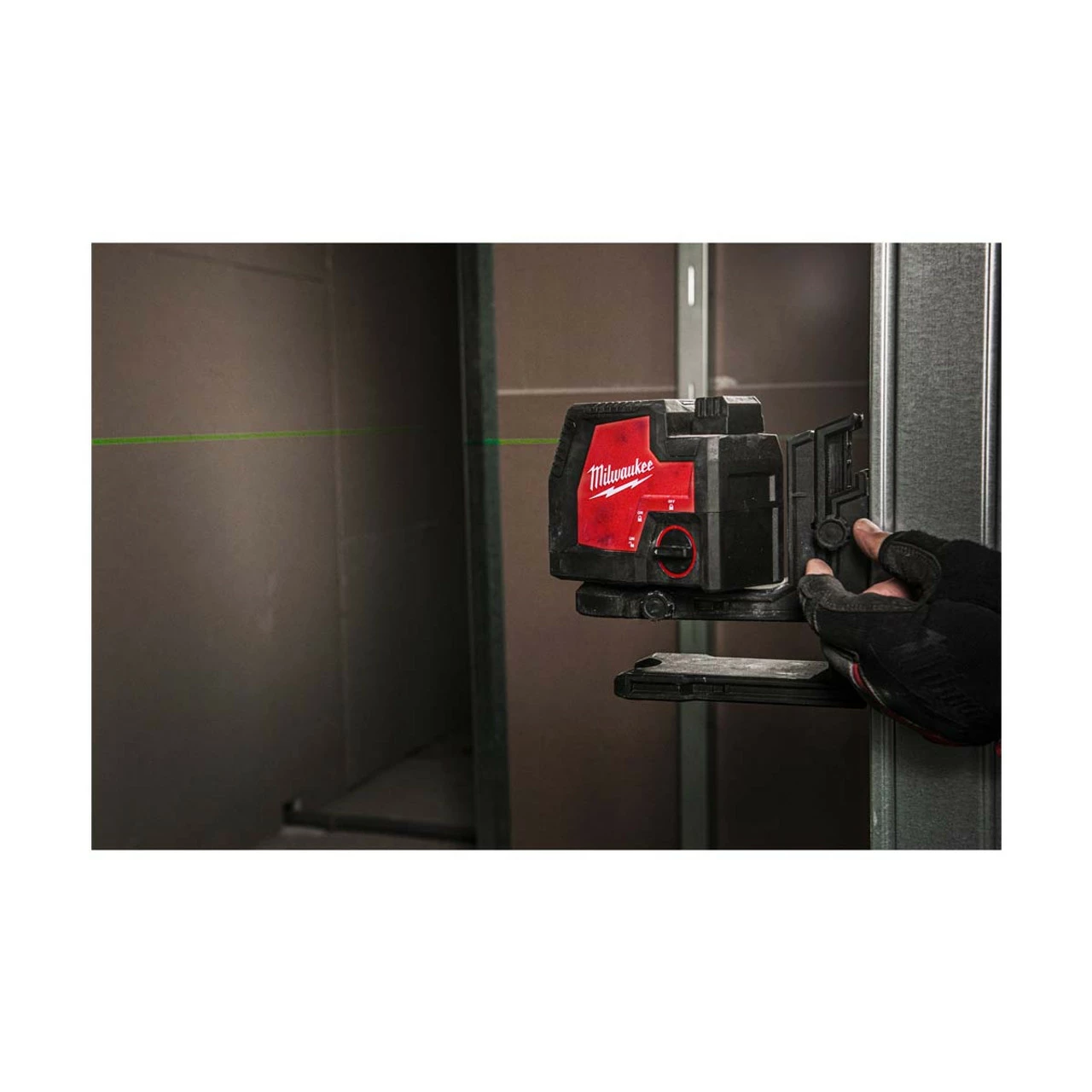

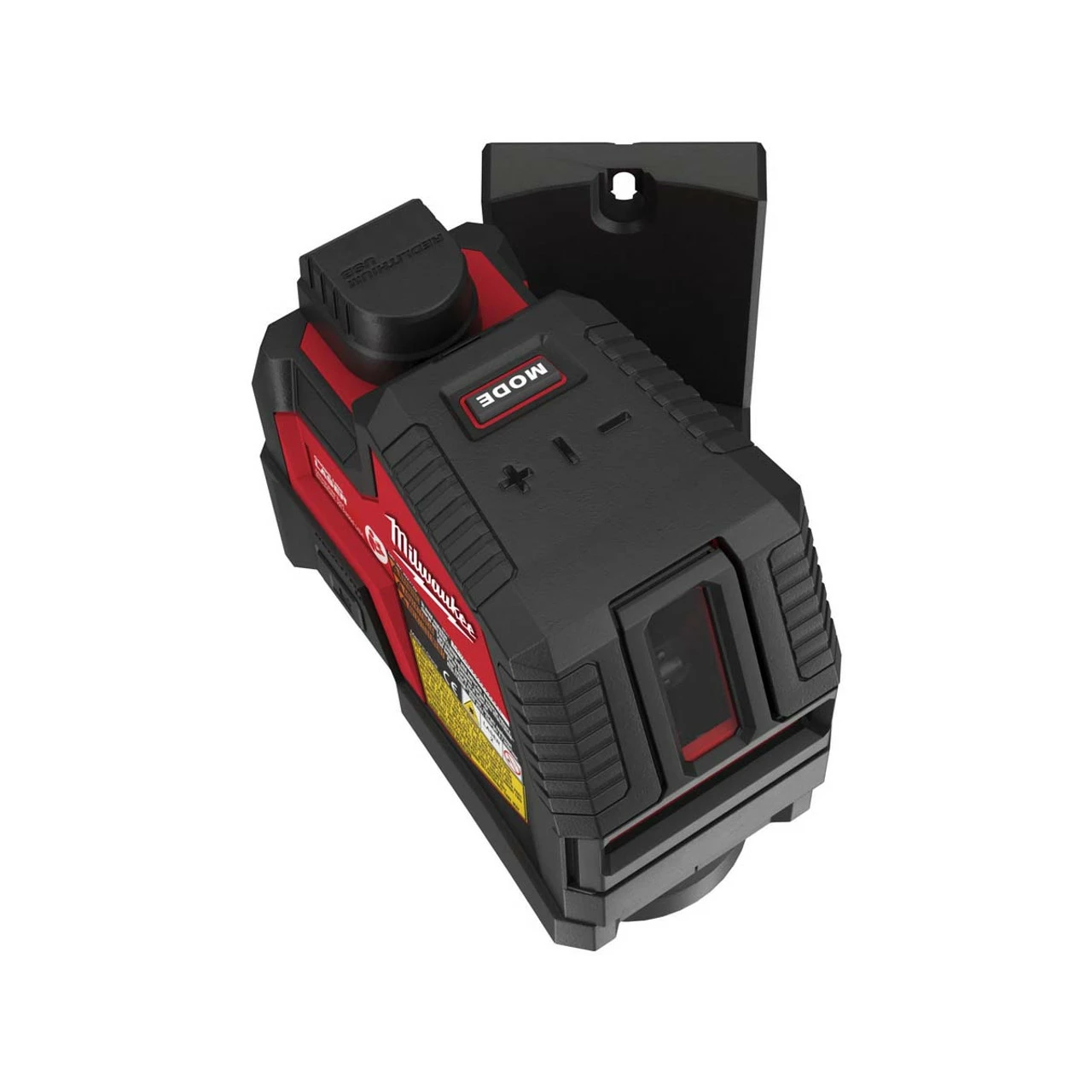

• Integrated magnetic bracket with rear mounted amplified rare earth magnets, ¼″ tripod thread and hang hole – allows attachment to steel stud, wooden stud and tripod
• The bracket also provides the laser 360° rotation, with an integrated micro control knob for faster point to point alignment
• Robust over-moulded construction with an IP 54 rating, the laser is water/ debris resistant and can withstand up to 1 m drops
• Conveniently charge REDLITHIUM™ USB battery internally during use with micro-USB cable from USB power source or AC outlet
• Fuel gauge on the top and side of the laser allows for fast checking of the REDLITHIUM™ USB battery charge
• Includes 1x track clip

L4CLL-301C Specification:

• Accuracy [mm|m]: 0.3
• Article Number: 4933478243
• Battery pack capacity (Ah): 3.0
• Battery type: Li-ion
• Colour of laser line: Green
• Compatible laser detector: LLD50
• IP protection class: IP 54
• Laser classification: Class 2
• Laser projection: 1x vertical, 1x horizontal
• Max. run time with L4 B3 battery [h]: 8
• No. of batteries supplied: 1
• Self levelling range [°]: 4.0
• Self levelling time [s]: 3
• Voltage (V): 4
• Weight with battery pack (EPTA) (kg): 0.90 (L4 B3)
• Working range detector [m]: 50 / 100
• Working range visible [m]: 30.0

What is Included:

• 1 x L4CLL-301C USB Rechargeable Green Cross Line Laser Level
• 1 x L4 B3 Battery pack
• 1 x USB cable and wall plug
• 1 x Kitbox
