Imex I88R Rotating Red Laser Level Kit With 2x 9.0Ah Batteries, LRX10 Receiver, Staff & Tripod

Imex i88R Rotating Red Laser Level Kit with 2x 9.0Ah Batteries, LRX10 Receiver, Staff & Tripod

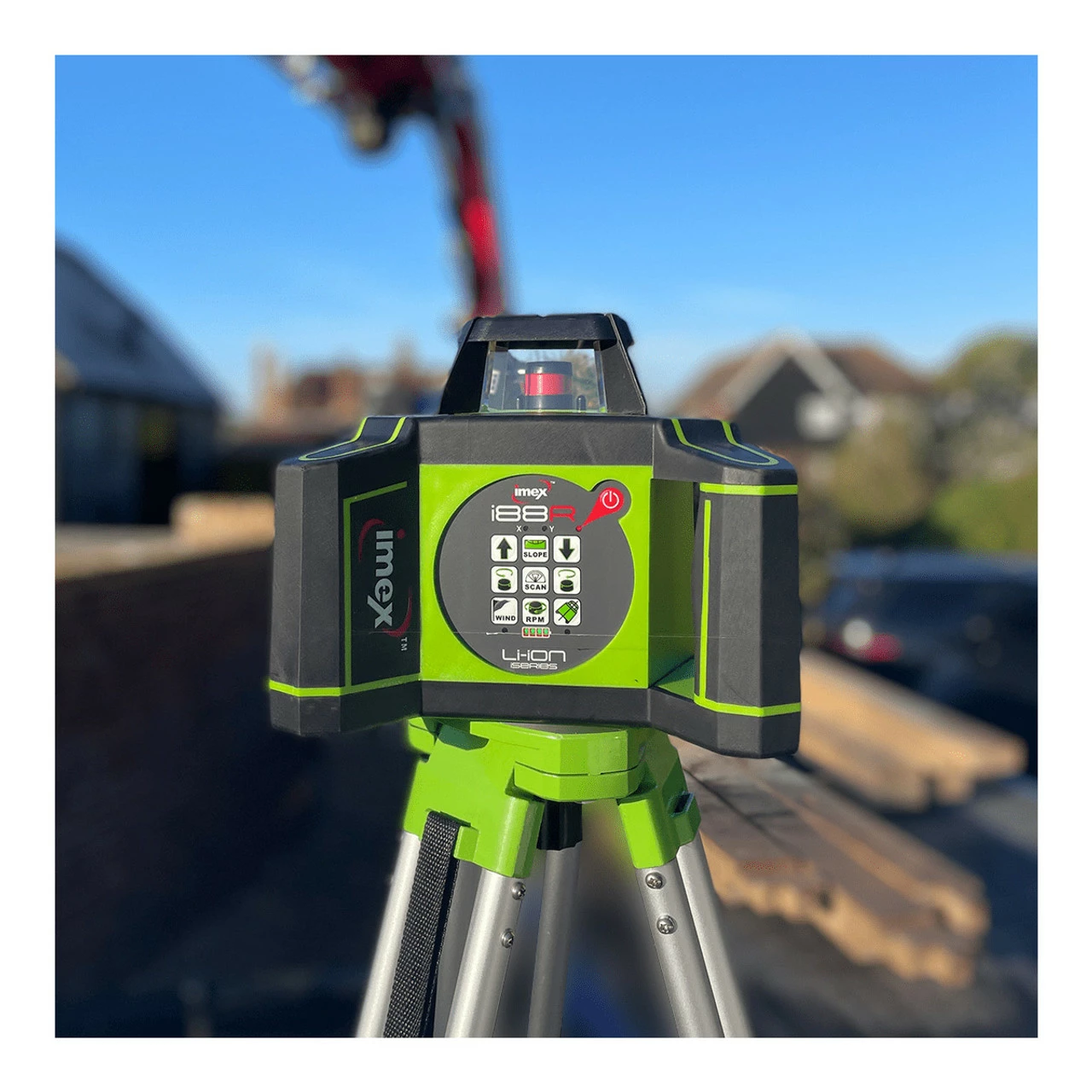

The Imex i88R Rotating Laser Kit is an excellent set of tools for landscapers, bricklayers, groundworkers, and builders. For difficult levelling and grading tasks that call for absolute accuracy, the Imex 600m Rotating Red Laser Level is one of the best tools around . With the dual grade slope mode, users can accurately record grades and slopes up to 8.8% in either direction. The level may also be used vertically, making it ideal for a variety of projects like steel erection, fencing, and long-range foundation setout. It features a +/-5° self-leveling range, a working distance of 600 metres, and an accuracy of 1.5 millimetres at a 30-meter distance. It provides consumers with almost 40 hours of nonstop use when its two strong 9.0Ah batteries are fully charged.

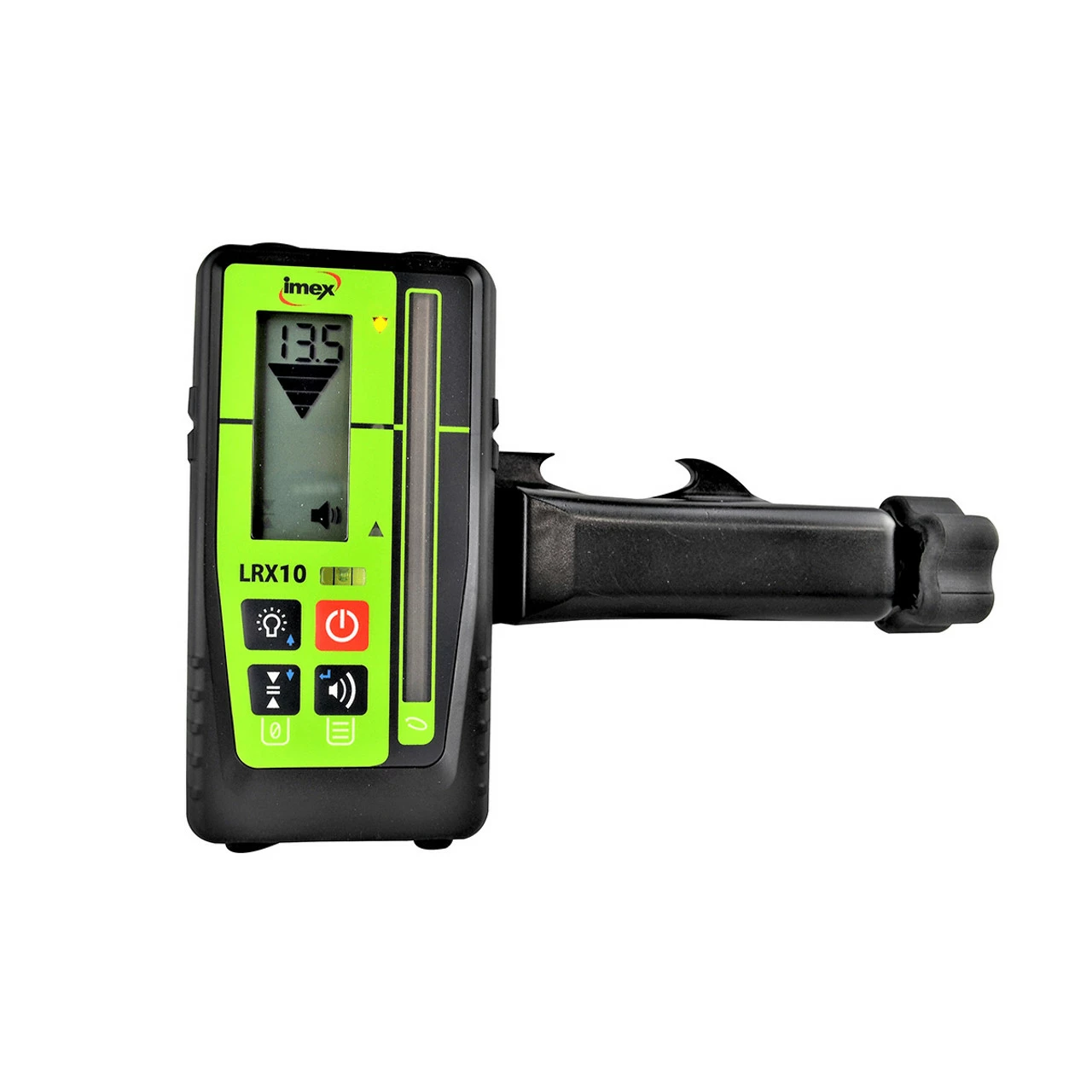

The LRX10 90mm Red/Green Rotary Digital Detector is a superb gadget that embodies the pinnacle of digital technology produced in Germany. This detector improves clarity and precision in levelling applications. With 0.5mm up to 10.00mm reading increments, this detector provides readings up to 0.5mm in windows as large as 90mm. It is durable, strong, impervious to water, and shockproof. It features a detectable spectrum of Red and Green lasers and a range of 300 m.  It has four resolutions – Fine (1.0mm), Medium ( 2.0mm), Course (5.0mm) and Ultra Course (10.0mm). A staff made specifically for use with auto levels, the IMEXLS5 5m Metric-E Levelling Staff is adaptable to any spinning laser receiver, optical level, or theodolite.

It is marked in metric units (cm/mm) on the front and in E grade units (for optical levelling at a distance when metric measurements are no longer visible) on the back. The SJA30 Flat Top Aluminium Tripod, which is a strong, well-made tripod perfect for levelling tasks, site lasers, and theodolite setups, is the also included.  Thanks to its lightweight construction, it may be moved and transported with little effort.

i88RX10-KIT Features:

• Robust construction tough horizontal/vertical laser level.
• Horizontal/Vertical self levelling (electronic). 600m range. Dual manual grade slope.

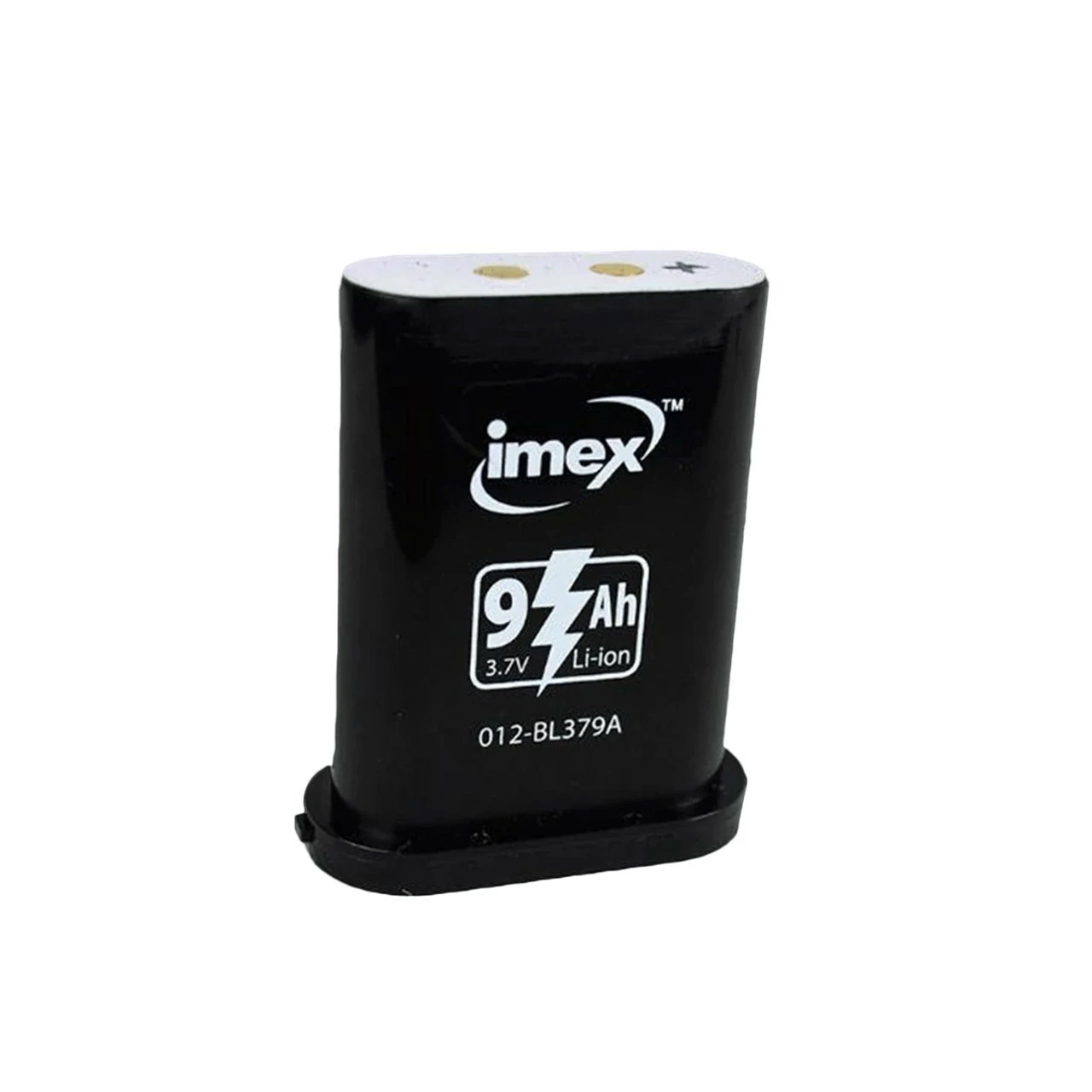

• Calibration Certificate9Ah lithium-ion battery – approx. 40 hours run time
• USB quick charge port with car charger
• LRX10 Digital Detector in mm reading (German made)
• 90mm Detector reading ultra fine, fine, medium, course and ultra course.
• Scan Mode – Allows for part beam rotation in selected working environments, i.e. on interior walls, busy work-sites where other laser interference may be present. Various scan lengths and rotation placement.
• Dual Grade – Grade slope to 5° (8.8%) in two directions, X and Y axis Simultaneously for true grade control. Ideal for pipe layout or concrete slab falls.
• Plumb Spot – Top and bottom plumb spot beam to assist in set ups over a point.
• Accuracy – +/- 1.5mm @ 30 metres for excellent results every time.
• Remote Control Panel – allows grade or other functions to be carried out up to 20 m away from the instrument, for true one-man operation and greater efficiency.
• Hi-Visibility Case – unique Imex feature, easy to see on the busiest construction site, minimises the risk of the unit being bumped, increasing safety and accuracy.

i88RX10-KIT Specification:

• Self Levelling Range: +/-5°
• Working Distance: 600m Diameter
• Function: Horizontal/Vertical
• Scan Mode: Yes, 0°, 10°, 45°, 90°, 180°
• Slope Mode: Yes – Single manual grade to 5° 8.8%
• Accuracy: 1.5mm @ 30m
• Rotation Speeds: 0, 60, 120, 300, 600 rpm
• Waterproof/Shockproof: IP66
• Light Source: Red 635nm Class II
• Power: 9 Ah 3.7v lithium-ion
• Detector: LRX10 Double Sided
• Working time – continuous use: 40hrs approx. Red
• Charging Time: 4 hours in unit or removed from unit
• USBC Charging: Yes; including 12v car charger
• High Wind Sensitivity: Re-set Yes
• Remote Control: Yes, iCR8
• Weight – Unit Only: 2.48kg
• Detector: German Made LRX10 Double Sided
• Detector Pick Up: 90mm -30mm to +60mm
• Detector Reading: Ultrafine – 0.5mm | Fine – 1.0mm | Medium – 2.0mm | Course – 5.0mm | Ultra Course – 10.0mm
• Detector Power: 1-AA > 50 hrs run
• Weight: 14 kg

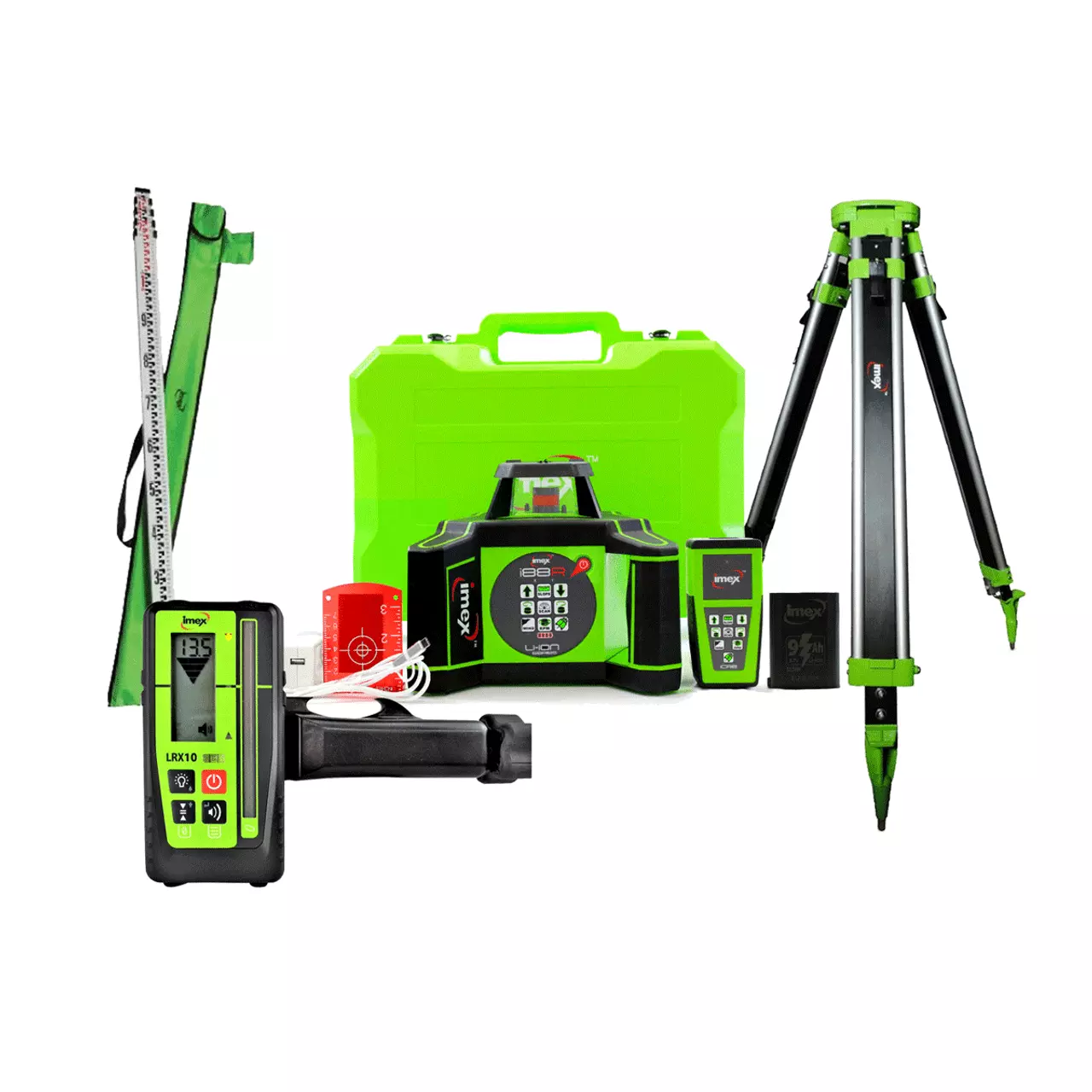

What is Included:

• 1x i88R laser level
• 1x Radio remote control
• 1x LRX10 detector & bracket
• 2x 9.0Ah Lithium batteries
• 1x USB/C charging cable
• 1x Vehicle charger adaptor
• 1x Magnetic target plate
• 1x Hard carry case
• 1x Imex SJA30 tripod
• 1x Imex IMEL5S staff
