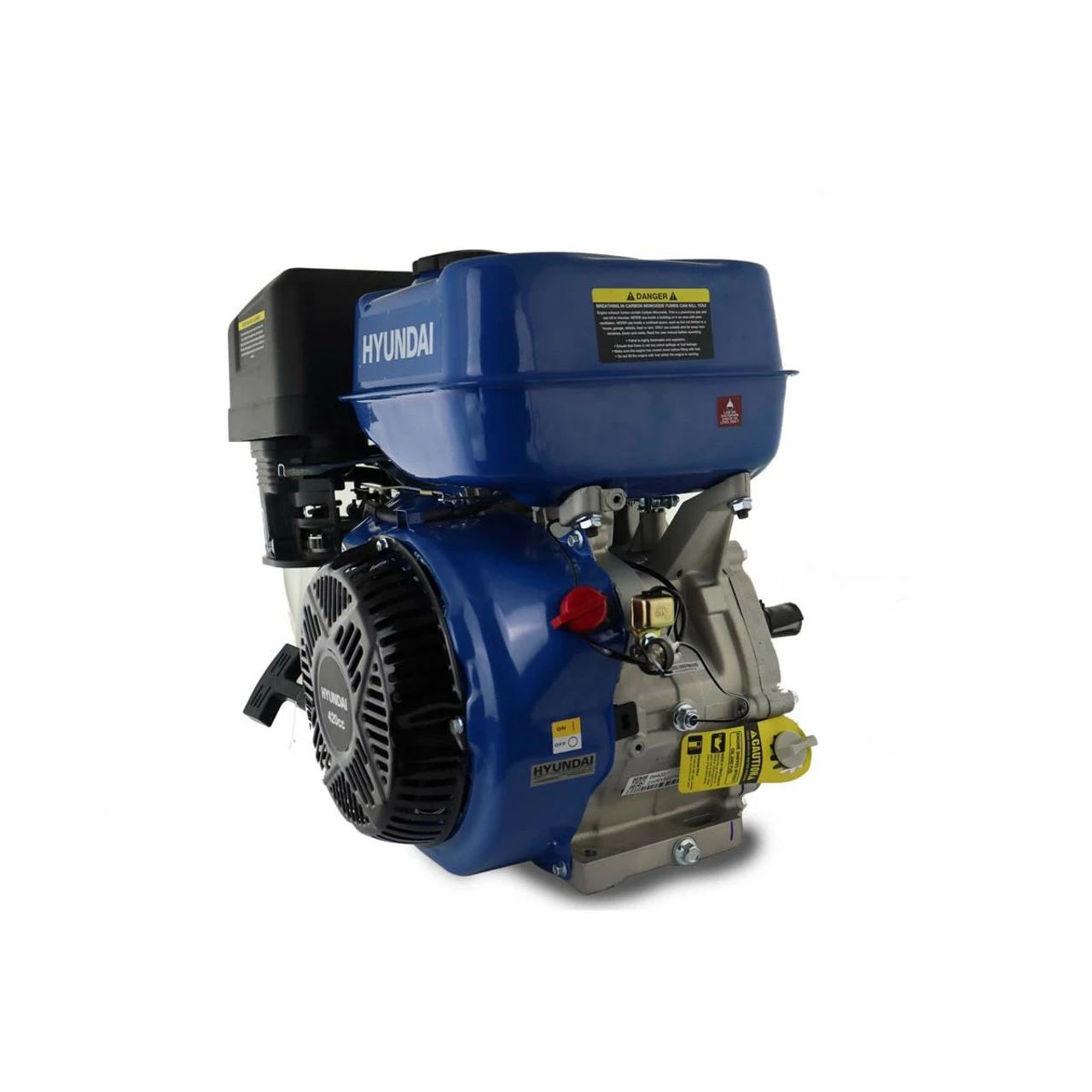

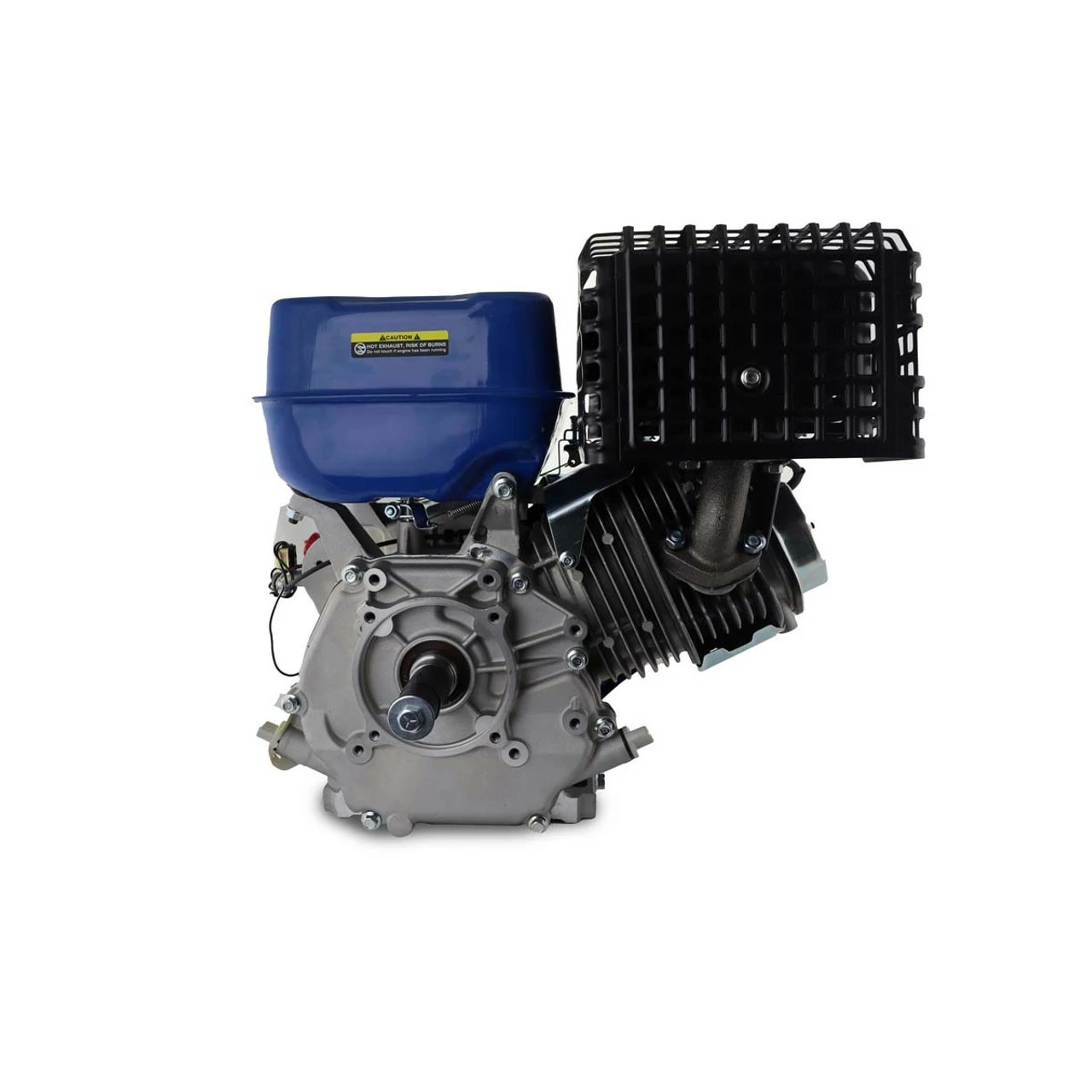

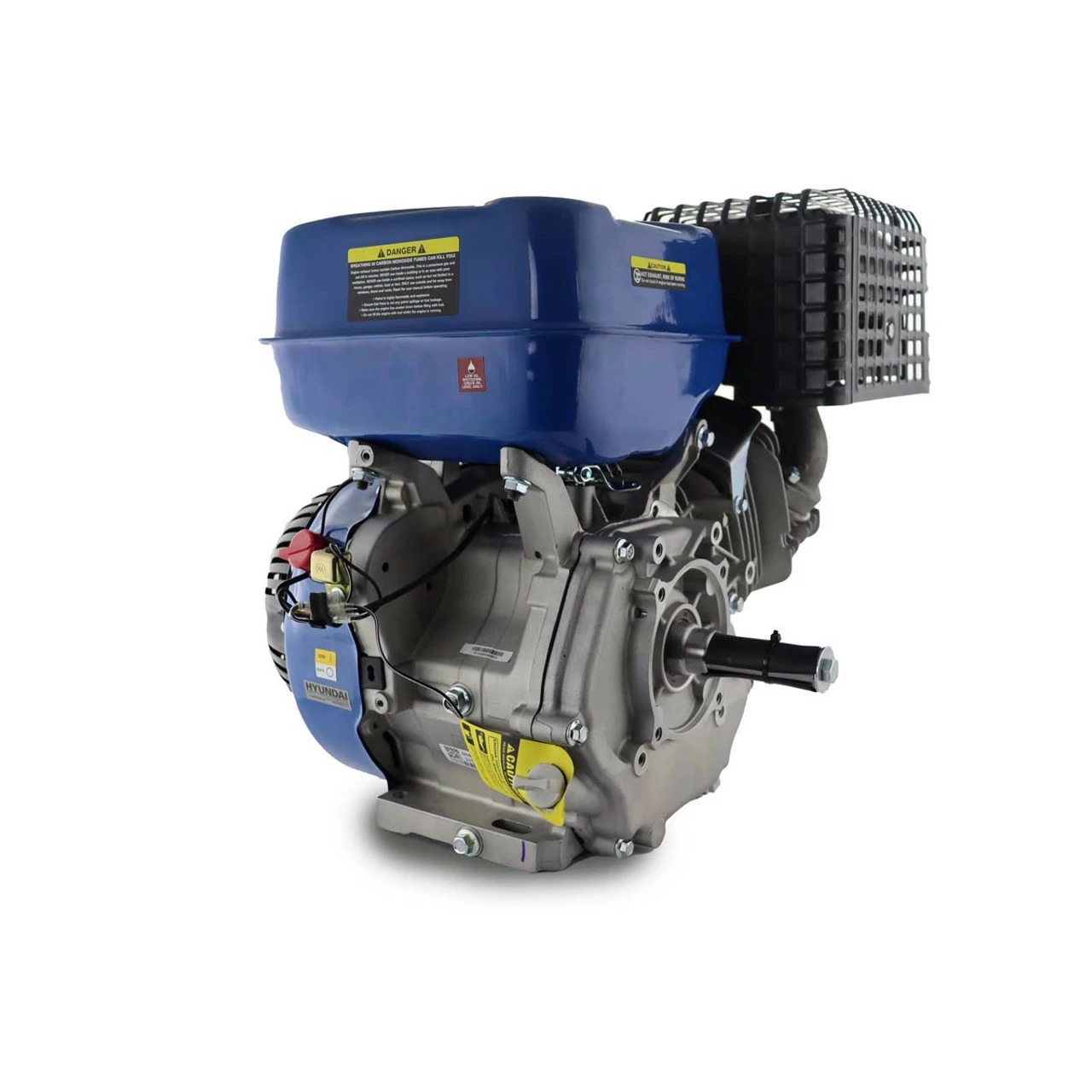

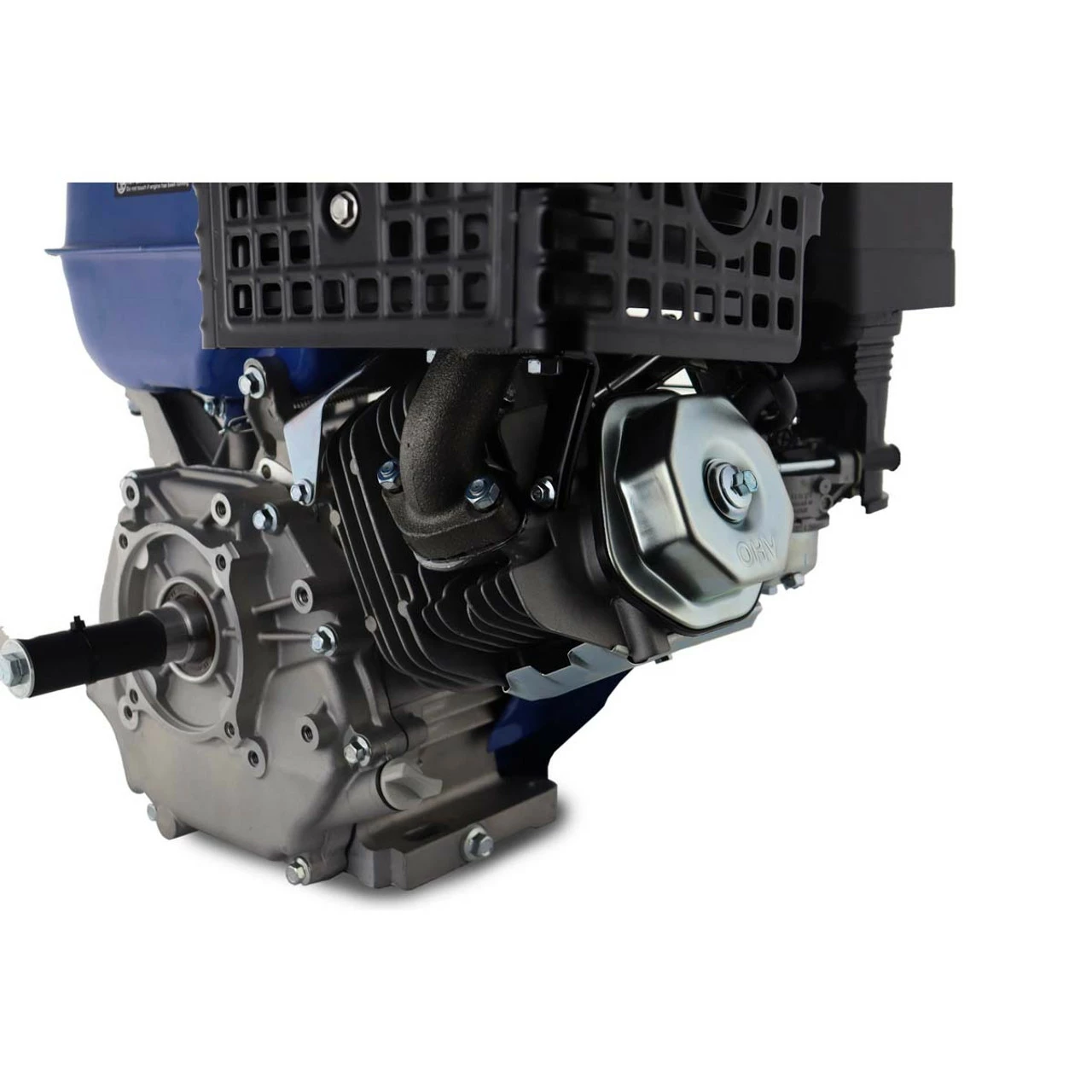

Hyundai IC420X-25 420cc 14hp 25mm Horizontal Straight Shaft 4-Stroke Petrol Engine

Hyundai IC420X-25 420cc 14hp 25mm Horizontal Straight Shaft 4-Stroke Petrol Engine

The IC420X-25 is a powerful 420cc petrol engine from Hyundai, ideal for a range of heavy-duty applications for use in construction equipment, industrial equipment, welders, water pumps, pressure washers, and more.

This powerful engine should be able to retrofit the mountings for major leading brands, offering a competitively-priced replacement engine for your machine.

A direct replacement for any 14hp engines, the IC420X-25 is suitable for the majority of pressure washers up to approximately 4000psi, open-frame generators up to 7.5kVA, and more.

With no messy oil and fuel to mix, 4-stroke engines have lower noise and vibration levels compared to their 2-stroke counterparts.

IC420X-25 Features:

• 420cc horizontal straight shaft petrol engine: Produces 14hp for heavy-duty applications
• Suitable for a range of products: Use in most pressure washers up to 4000psi, generators up to 7.5kVA, welders and more
• Simple-to-start engine: Easy recoil pull-starting
• CDI ignition: Reliable starting and uninterrupted running
• Tried and tested OHV engine: Offers a compact size, higher torque and lower-cost running than other engine types
• Low noise levels: Doesn’t compromise on power
• 4-stroke engine: Low fuel consumption and low emissions
• Large 6.5L fuel tank: You won’t have to keep stopping to top up with petrol
• Easy to fit: Suitable for a range of machines with a 25mm straight shaft connection
• Peace of mind: 2 year Hyundai home-use warranty* / 1 year commercial warranty* (terms apply)

IC420X-25 Specification:

• Model: IC420X-25
• Shaft Type: Horizontal Straight Shaft
• Shaft Size (mm): 25
• Power (hp): 14
• Max Speed (rpm): 3600
• Engine Type: OHV
• Displacement (cc): 420
• Bore x Stroke (mm): 90 x 66
• Start Method: Recoil
• Fuel Capacity (L): 6.5
• Engine Oil Capacity (ml): 1.1
• Engine Oil: SAE30 / SAE15w40
• Low Oil Sensor: Yes
• Ignition System: CDI
• Package Dimensions (H x W x L) (mm): 450 x 400 x 450
• Net Weight (kg): 31
• Gross Weight (kg): 36
• Model EAN: 5059608222050
• Warranty: 2 Year standard warranty, 1 Year commercial warranty* (Terms apply)

What is Included:

• 1 x IC420X-25 420cc 14hp Shaft 4-Stroke Petrol Engine
